SAE 4-Bolt Flange Steel Adapter, 1.50 Inch Code 62 Flange Shipping Plate

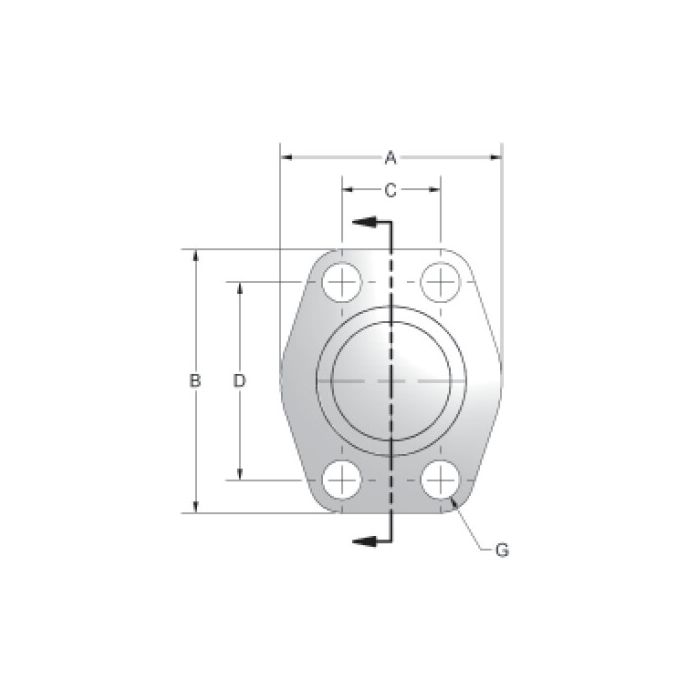

A 3.75	B 4.44	C 1.44	D 3.13	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Manual Override Option No	Pad Size 1.50	Supplier Part Number SPX-24U	Product Weight 1.75 lbs	Alternate Part Numbers Alternate Part Number C1KN57, Alternate Part Number MI-03944325, Alternate Part Number MINO-00054H04899

Product Questions & Answers 3

Product Questions & Answers

Will this flange work with a standard Code 62 setup?

Question by: Steve Y on Dec 5, 2025, 9:36 AM

Yes, this adapter is designed for seamless integration with Code 62 flange systems, ensuring secure and reliable hydraulic connections.

Answer by: Customer Support on Dec 6, 2025, 1:25 PM

What're the actual dimensions on this shipping plate? Trying to make sure it'll fit up with what we already got on the line.

Question by: Rhonda B on Oct 21, 2025, 8:05 PM

The plate measures 3.75 inches on the A dimension and 4.44 inches on the B dimension, with a C dimension of 1.437 inches and a D dimension of 3.125 inches. The pad size comes in at 1.5 inches, and the whole thing is built around a Code 62 four-bolt flange pattern. If you're matching it to an existing Code 62 setup, those numbers should line up without issue.

Answer by: Customer Support on Oct 23, 2025, 8:18 AM

trying to replace a shipping plate on a code 62 four bolt flange, is this the one for a 1.5 pad size?

Question by: Peggy E on Dec 7, 2025, 6:14 AM

For a Code 62 SAE 4-bolt flange shipping plate, this part matches a 1.50 inch pad size and is built around that Code 62 flange setup.

Answer by: Customer Support on Dec 8, 2025, 8:58 AM

Similar Products

Model Number	Pad Size	A	B	C	D
SPX-20U	1.25	3.06	3.75	1.25	2.625
SPX-24U	1.5	3.75	4.44	1.437	3.125
SPX-32U	2	4.5	5.25	1.75	3.812
