Code 61 Split Flange Kits

Products

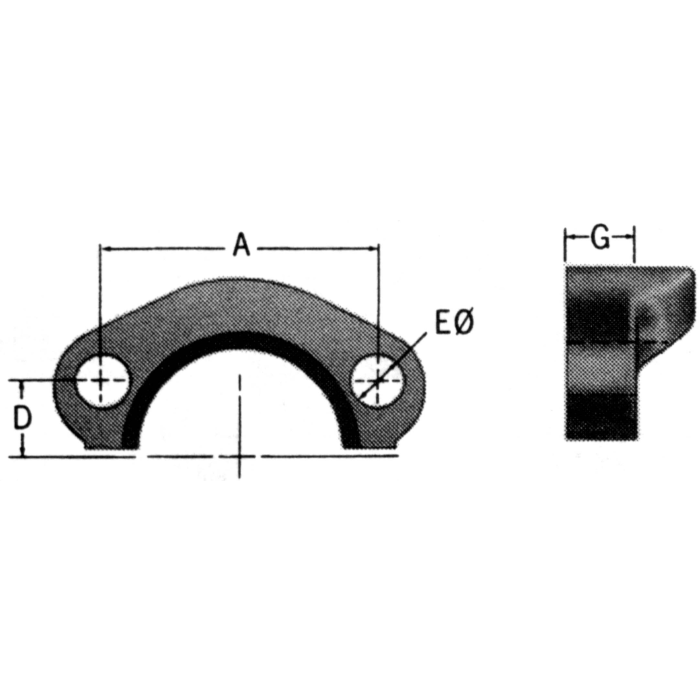

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
