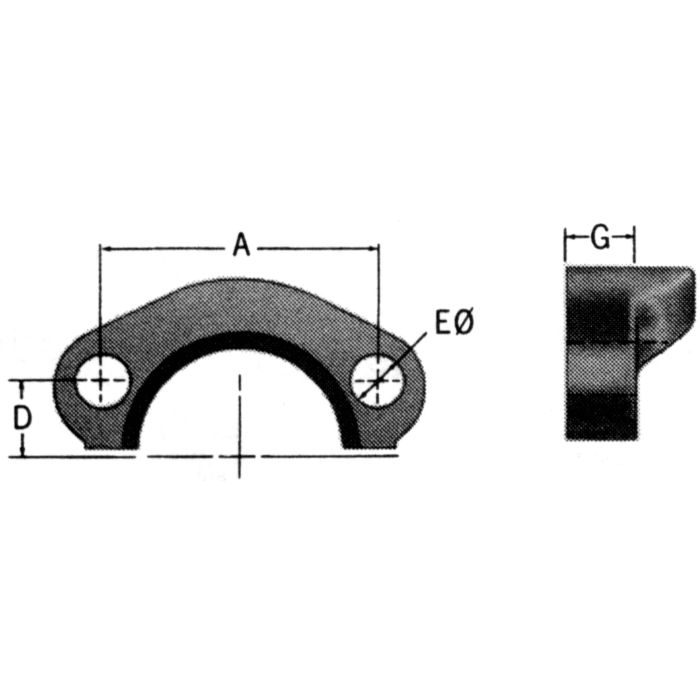

main product photo

Code 61 Split Flange Kit, 2.81 (-32) Flange Head, Up to 3000.00 PSI

Ask A Question
A
3.06
D
0.84
Dash Size
-32
E
0.53
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
2
End Type 1
Flanged
Flange Head Dia.
2.81
G
0.62
Maximum Operating Pressure
3000
Minimum Working Temperature
-40
Supplier Part Number
FF593-32
Thread Sealant
No
Torque Rating
650-800 lb-in
Torque Rating
650-800 lb-in
Product Weight
1.55 lbs
Alternate Part Numbers
Alternate Part Number C1CV44
Product Questions & Answers 3

Product Questions & Answers

What size bolts does this use? Just wanna make sure I have 'em on hand before I start.
Question by: Sherry G on Oct 10, 2025, 11:29 AM
The kit comes with four grade 8 hex bolts, so you shouldn't need to source any separately for installation.
Answer by: Customer Support on Oct 12, 2025, 6:19 AM
Running a system on petroleum-based hydraulic fluid around 2500 PSI. This a Code 61 flange setup, just want to make sure the o-ring that comes with it ain't gonna give me trouble down the road.
Question by: Ray M on Jul 4, 2025, 4:35 PM
Buna-N handles petroleum and water-based hydraulic fluids without issue, and 2500 PSI sits well within the 3000 PSI rated capacity of this kit. The included 90 durometer o-ring gives you a firm, reliable seal under those conditions. Only time you'd need to look at a different o-ring material is if your fluid type or operating temperature pushes outside what Buna-N can handle, which for standard petroleum fluid at normal system temps, you're not going to hit that wall.
Answer by: Customer Support on Jul 6, 2025, 12:45 PM
got a -32 code 61 flange connection, is this the kit with the right size flange head?
Question by: Travis J on Feb 19, 2026, 2:18 PM
This kit is a SAE Code 61 split flange kit in dash size -32 with a 2.81 inch flange head diameter, and it comes with the two flange halves, four grade 8 bolts, four lock washers, and a 90 durometer Buna-N O-ring.
Answer by: Customer Support on Feb 21, 2026, 11:46 AM

Similar Products

Model Number Flange Head Dia. Dash Size Maximum Operating Pressure Torque Rating A D E G Price Buy Now
12SFO 1.5 -12 5000 225-350 lb-in 1.88 0.44 0.41 0.56
16SFO 1.75 -16 5000 325-425 lb-in 2.06 0.52 0.41 0.62
20SFO 2 -20 4000 425-550 lb-in 2.31 0.59 0.47 0.56
24SFO 2.38 -24 3000 550-700 lb-in 2.75 0.7 0.53 0.62
32SFO 2.81 -32 3000 650-800 lb-in 3.06 0.84 0.53 0.62
40SFO 3.31 -40 2500 950-1100 lb-in 3.5 1 0.53 0.75
FF593-16 1.75 -16 5000 325-425 lb-in 2.06 0.52 0.41 0.62
8SFO 0.5 -08 5000 175-225 lb-in 0.86 1.5 0.75 1.22
FF593-32 2.81 -32 3000 650-800 lb-in 3.06 0.84 0.53 0.62
