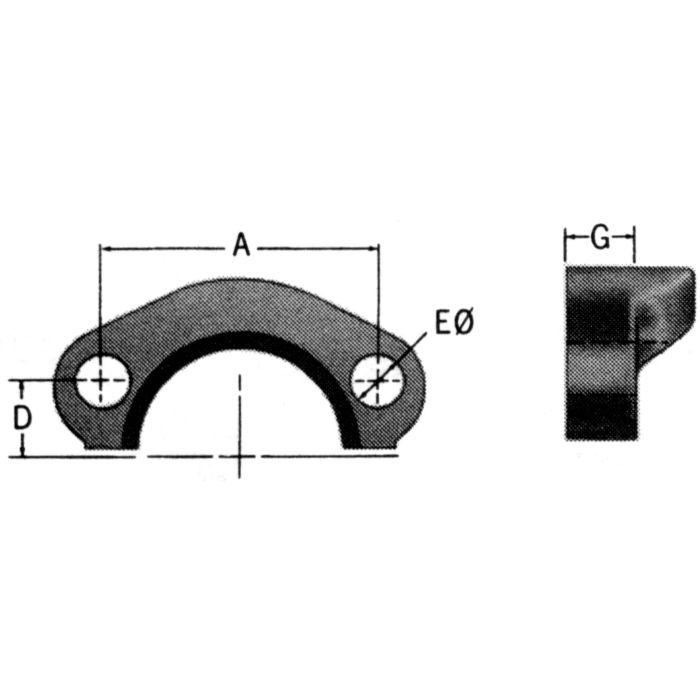

main product photo

Code 61 Split Flange Kit, 1.75 (-16) Flange Head, Up to 5000.00 PSI

Ask A Question
A
2.06
D
0.52
Dash Size
-16
E
0.41
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
1
End Type 1
Flanged
Flange Head Dia.
1.75
G
0.62
Maximum Operating Pressure
5000
Minimum Working Temperature
-40
Supplier Part Number
FF593-16
Thread Sealant
No
Torque Rating
325-425 lb-in
Torque Rating
325-425 lb-in
Product Weight
0.88 lbs
Alternate Part Numbers
Alternate Part Number C1CV41
Product Questions & Answers 4

Product Questions & Answers

does this kit come with everything needed to make the connection, or do i need to source the o-ring and hardware separate?
Question by: Ross M on May 2, 2025, 6:56 PM
Everything you need is in the box. Each kit includes two flange halves, four grade 8 hex bolts, four lock washers, and a 90 durometer Buna-N o-ring. Grade 8 hardware is a nice touch since a lot of kits cut corners there. You should be able to go straight from the box to the installation without hunting down extra parts.
Answer by: Customer Support on May 4, 2025, 6:01 AM
What kind of fluids can this handle without issues? Just want to make sure before I hook it up.
Question by: Brenda W on Apr 3, 2025, 10:31 AM
Buna-N is well-suited for petroleum and water-based hydraulic fluids, so you should be good to go there.
Answer by: Customer Support on Apr 5, 2025, 7:32 AM
What size is that flange head? I wanna make sure it fits my setup.
Question by: Tommy M on Jan 7, 2026, 2:47 PM
With a flange head diameter of 1.75 inches and a dash size of -16, this split flange kit is quite versatile for different hydraulic systems.
Answer by: Customer Support on Jan 9, 2026, 6:46 AM
got a -16 hose end with a code 61 flange, is this kit the right size for it
Question by: Wes J on Jul 7, 2025, 11:18 AM
For a -16 SAE Code 61 flange connection, this kit matches that dash size and uses a 1.75 inch flange head diameter. It comes with the two split flange halves, four grade 8 bolts, four lock washers, and a 90 durometer Buna-N O-ring so you have the full clamp set for that size.
Answer by: Customer Support on Jul 9, 2025, 6:53 AM

Similar Products

Model Number Flange Head Dia. Dash Size Maximum Operating Pressure Torque Rating A D E G Price Buy Now
12SFO 1.5 -12 5000 225-350 lb-in 1.88 0.44 0.41 0.56
16SFO 1.75 -16 5000 325-425 lb-in 2.06 0.52 0.41 0.62
20SFO 2 -20 4000 425-550 lb-in 2.31 0.59 0.47 0.56
24SFO 2.38 -24 3000 550-700 lb-in 2.75 0.7 0.53 0.62
32SFO 2.81 -32 3000 650-800 lb-in 3.06 0.84 0.53 0.62
40SFO 3.31 -40 2500 950-1100 lb-in 3.5 1 0.53 0.75
FF593-16 1.75 -16 5000 325-425 lb-in 2.06 0.52 0.41 0.62
8SFO 0.5 -08 5000 175-225 lb-in 0.86 1.5 0.75 1.22
FF593-32 2.81 -32 3000 650-800 lb-in 3.06 0.84 0.53 0.62
