Code 61 Split Flange Kit, 0.50 (-08) Flange Head, Up to 5000.00 PSI

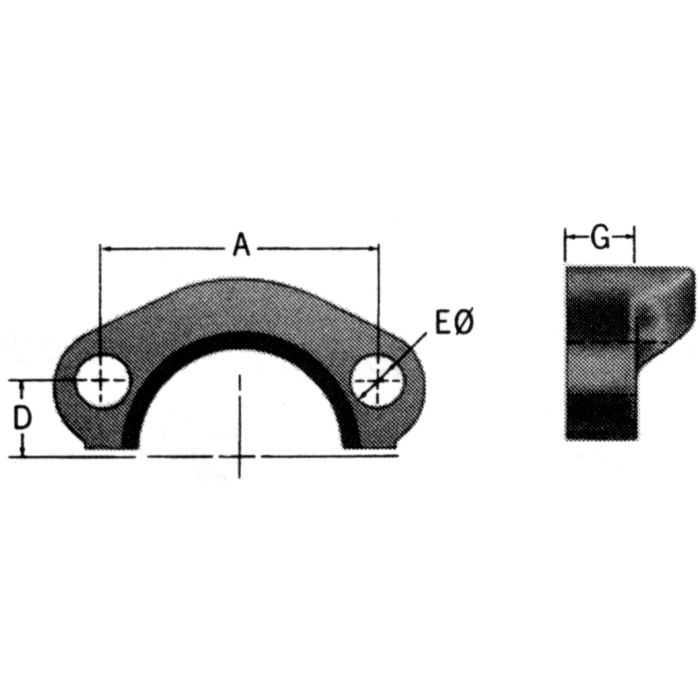

A 0.86	D 1.50	Dash Size -08	E 0.75	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 0.50	G 1.22	Maximum Operating Pressure 5000	Supplier Part Number 8SFO	Thread Sealant No	Torque Rating 175-225 lb-in	Torque Rating 175-225 lb-in	Product Weight 0.50 lbs	Alternate Part Numbers Alternate Part Number C1ZY50, Alternate Part Number MI-04146545, Alternate Part Number MINO-00054H06605

Product Questions & Answers 1

Product Questions & Answers

what all comes in this kit, and will the hardware hold up at 5000 PSI?

Question by: Lance G on Nov 27, 2025, 4:25 PM

Each kit includes two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-Ring. Grade 8 hardware is about as tough as it gets for this type of connection, and the kit is rated to handle up to 5000 PSI, so yes, it's built for full-pressure industrial hydraulic service.

Answer by: Customer Support on Nov 28, 2025, 6:04 PM

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
