Code 61 Split Flange Kit, 3.31 (-40) Flange Head, Up to 2500.00 PSI

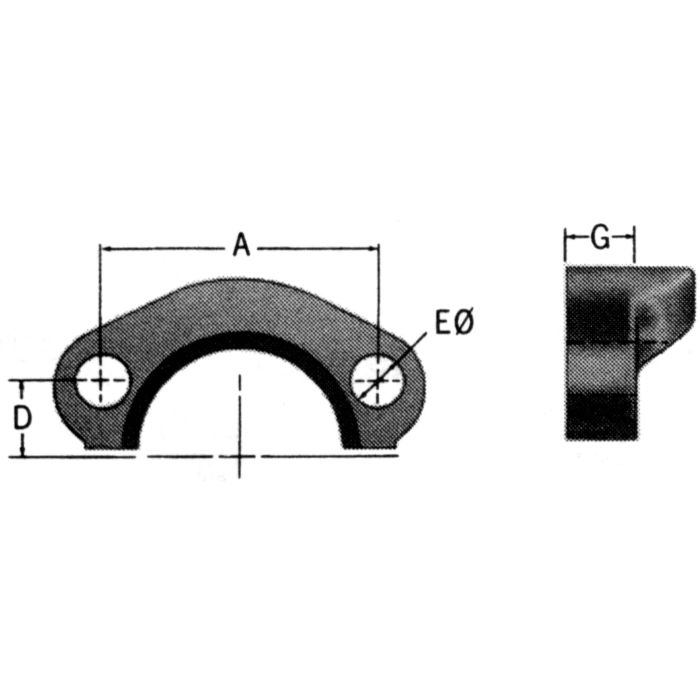

A 3.50	D 1	Dash Size -40	E 0.53	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 3.31	G 0.75	Maximum Operating Pressure 2500	Supplier Part Number 40SFO	Thread Sealant No	Torque Rating 950-1100 lb-in	Torque Rating 950-1100 lb-in	Product Weight 2.47 lbs	Alternate Part Numbers Alternate Part Number C1BN96, Alternate Part Number MI-03071934, Alternate Part Number MINO-00054X10002

Product Questions & Answers 2

Product Questions & Answers

got a -40 code 61 flange head, is this kit the right size and what all comes in it?

Question by: Frank H on Apr 16, 2025, 8:52 PM

For a -40 Code 61 split flange setup with a 3.31 inch flange head diameter, this kit matches that size. It includes two flange halves, four Grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-ring.

Answer by: Customer Support on Apr 18, 2025, 8:57 AM

what fluids is that buna-n o-ring gonna hold up to, petroleum based or water based or both?

Question by: Ray B on Jul 28, 2025, 6:33 AM

Buna-N handles both petroleum and water-based hydraulic fluids just fine. That said, if your system runs anything outside those two categories, or operates at temperatures pushing past 250 degrees F, you'd want a different seal material. The kit itself is rated down to negative 40 degrees F on the cold end, so typical outdoor or unheated shop conditions aren't a concern.

Answer by: Customer Support on Jul 30, 2025, 6:45 AM

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
