Code 61 Split Flange Kit, 2.81 (-32) Flange Head, Up to 3000.00 PSI

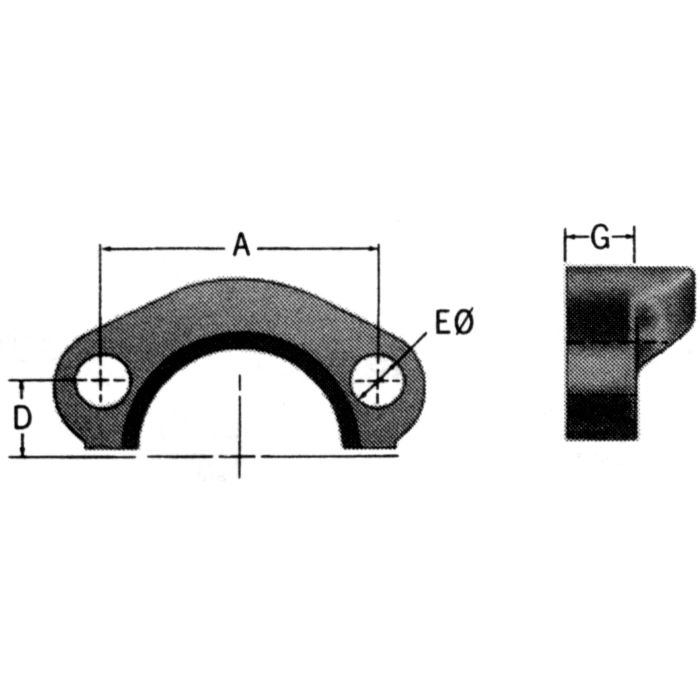

A 3.06	D 0.84	Dash Size -32	E 0.53	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 2.81	G 0.62	Maximum Operating Pressure 3000	Supplier Part Number 32SFO	Thread Sealant No	Torque Rating 650-800 lb-in	Torque Rating 650-800 lb-in	Product Weight 1.69 lbs	Alternate Part Numbers Alternate Part Number C1BM16, Alternate Part Number FMC3619025, Alternate Part Number FMC620-1922, Alternate Part Number MI-00347287, Alternate Part Number MINO-00054F82619

Product Questions & Answers 2

Product Questions & Answers

got a -32 code 61 connection, does this kit come with everything i need or am i still hunting down seals and bolts

Question by: Jean M on Jan 20, 2026, 2:47 PM

In the box you get (2) flange halves, (4) grade 8 hex bolts, (4) lock washers, and (1) 90 durometer Buna-N O-ring, so it covers the common hardware and seal for a Code 61 -32 split flange setup.

Answer by: Customer Support on Jan 22, 2026, 6:00 AM

What kind of hydraulic fluid can I use with this flange kit?

Question by: Terry S on Sep 15, 2025, 11:01 AM

Buna-N O-rings are compatible with both petroleum and water-based hydraulic fluids.

Answer by: Customer Support on Sep 17, 2025, 6:43 AM

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
