Code 61 Split Flange Kit, 2.38 (-24) Flange Head, Up to 3000.00 PSI

Ask A Question

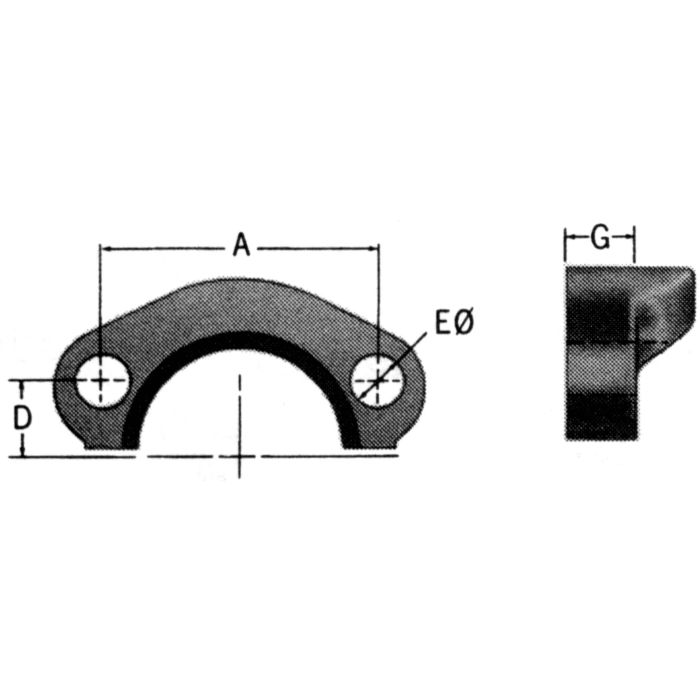

A
2.75
D
0.70
Dash Size
-24
E
0.53
Brand
Anchor Fluid Power
Brand
Anchor Fluid Power
Pack Size
1.00
UOM
EA
Flange Head Dia.
2.38
G
0.62
Maximum Operating Pressure
3000
Supplier Part Number
24SFO
Thread Sealant
No
Torque Rating
550-700 lb-in
Torque Rating
550-700 lb-in
Product Weight
1.52 lbs
Alternate Part Numbers
Alternate Part Number C1BG72, Alternate Part Number FMC102-0273, Alternate Part Number MI-00347280, Alternate Part Number MINO-00054F82618
Product Questions & Answers 4

Product Questions & Answers

got a -24 code 61 setup, is this kit the right size or am i gonna be fightin it
Question by: Hank P on Aug 28, 2025, 5:42 PM
For a -24 Code 61 split flange connection, this kit matches that dash size and uses a 2.38 inch flange head diameter. The set comes with two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-ring.
Answer by: Customer Support on Aug 30, 2025, 6:55 AM
What size O-ring does this kit use? Just wanna make sure it'll fit my setup.
Question by: Diane M on May 6, 2025, 1:24 PM
Included in this kit is a 90 durometer Buna-N O-ring.
Answer by: Customer Support on May 8, 2025, 10:21 AM
Does this kit work with petroleum-based hydraulic fluid, or do I need something different for that?
Question by: Neal C on Jul 28, 2025, 10:06 AM
Petroleum-based fluid is exactly what the Buna-N O-Ring in this kit is built for. Water-based hydraulic fluids are also compatible. The usable temperature range runs from -40°F up to 250°F, so most standard hydraulic systems will fall well within that window. If your setup runs fluids outside those parameters, a different O-Ring material would be needed, but for conventional petroleum or water-based systems this kit handles it fine.
Answer by: Customer Support on Jul 29, 2025, 5:12 PM
trying to swap out an old split flange kit, is this one the right size for a -24 head
Question by: Rick C on Aug 13, 2025, 11:25 AM
The key callouts are Code 61, dash size -24, and a 2.38 inch flange head diameter. If your connection matches those, this kit is the correct size.
Answer by: Customer Support on Aug 14, 2025, 3:36 PM

Similar Products

Model Number Flange Head Dia. Dash Size Maximum Operating Pressure Torque Rating A D E G Price Buy Now
12SFO 1.5 -12 5000 225-350 lb-in 1.88 0.44 0.41 0.56
16SFO 1.75 -16 5000 325-425 lb-in 2.06 0.52 0.41 0.62
20SFO 2 -20 4000 425-550 lb-in 2.31 0.59 0.47 0.56
24SFO 2.38 -24 3000 550-700 lb-in 2.75 0.7 0.53 0.62
32SFO 2.81 -32 3000 650-800 lb-in 3.06 0.84 0.53 0.62
40SFO 3.31 -40 2500 950-1100 lb-in 3.5 1 0.53 0.75
FF593-16 1.75 -16 5000 325-425 lb-in 2.06 0.52 0.41 0.62
8SFO 0.5 -08 5000 175-225 lb-in 0.86 1.5 0.75 1.22
FF593-32 2.81 -32 3000 650-800 lb-in 3.06 0.84 0.53 0.62
