Code 61 Split Flange Kit, 2.00 (-20) Flange Head, Up to 4000.00 PSI

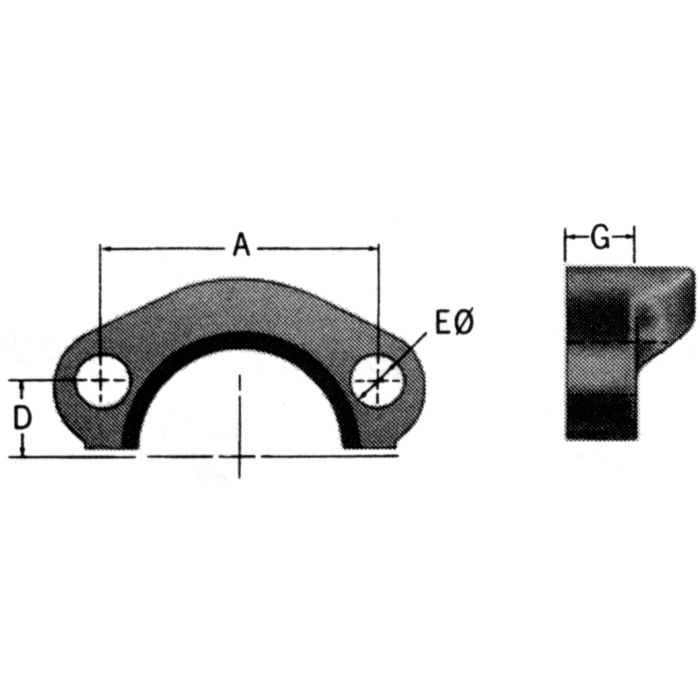

A 2.31	D 0.59	Dash Size -20	E 0.47	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 2	G 0.56	Maximum Operating Pressure 4000	Supplier Part Number 20SFO	Thread Sealant No	Torque Rating 425-550 lb-in	Torque Rating 425-550 lb-in	Product Weight 1.05 lbs	Alternate Part Numbers Alternate Part Number C1BB68, Alternate Part Number FMC102-1676, Alternate Part Number MI-05945359, Alternate Part Number MINO-00054H27653

Product Questions & Answers 3

Product Questions & Answers

trying to match up parts here, is the 20SFO the -20 code 61 split flange kit with the 2 inch flange head?

Question by: Chad B on Mar 7, 2026, 9:44 AM

It is a Code 61 split flange kit for dash size -20 with a 2.00 inch flange head diameter.

Answer by: Customer Support on Mar 8, 2026, 1:07 PM

what's the torque spec on the bolts for this split flange kit? want to make sure we're not over or under tightening when we put it together

Question by: Pete H on Oct 9, 2025, 7:23 PM

Bolt torque on this kit runs between 425 and 550 lb-in for the grade 8 hex bolts included. Stay within that range and you'll get a proper seal without risking damage to the flange halves or the O-ring. The four lock washers in the kit help keep things from backing off once torqued down.

Answer by: Customer Support on Oct 11, 2025, 6:50 AM

i’ve got a -20 flange head setup, is this the right split flange kit size for that?

Question by: Darryl S on Aug 10, 2025, 4:48 PM

The key callout is the dash size and flange head diameter. This kit is a -20 (2.00 inch) Code 61 split flange kit, and it comes with the matching 90 durometer Buna-N O-ring plus the bolts and lock washers.

Answer by: Customer Support on Aug 12, 2025, 8:46 AM

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
