Code 61 Split Flange Kit, 1.75 (-16) Flange Head, Up to 5000.00 PSI

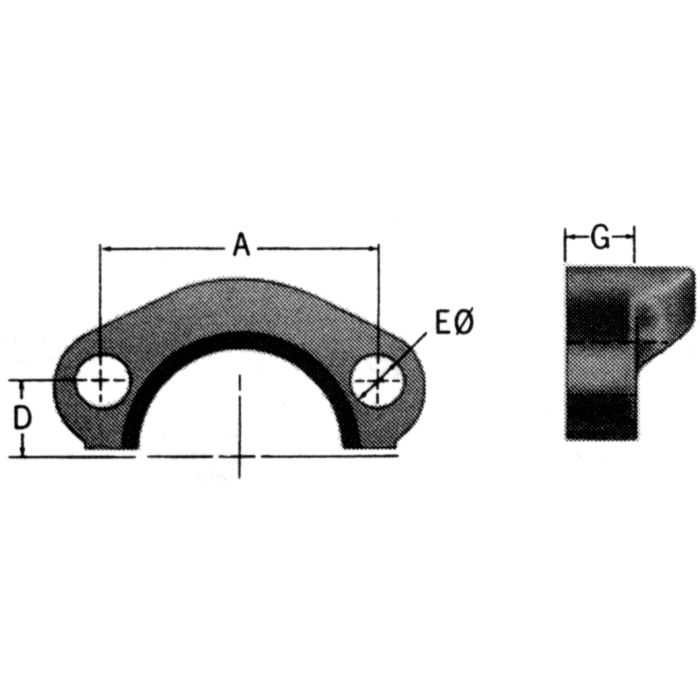

A 2.06	D 0.52	Dash Size -16	E 0.41	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 1.75	G 0.62	Maximum Operating Pressure 5000	Supplier Part Number 16SFO	Thread Sealant No	Torque Rating 325-425 lb-in	Torque Rating 325-425 lb-in	Product Weight 0.75 lbs	Alternate Part Numbers Alternate Part Number 1061114, Alternate Part Number C1AL35, Alternate Part Number MI-00347264, Alternate Part Number MINO-00054F82614

Product Questions & Answers

what bolts come in the kit and how tight do i crank em down

Question by: Hubert H on Jun 27, 2025, 6:20 PM

Expect four grade 8 hex bolts and four lock washers in the package. Torque those fasteners between 325 and 425 lb-in for a secure seal.

Answer by: Customer Support on Jun 29, 2025, 4:19 PM

got a -16 hose end with a 1.75 flange head, is this the right split flange kit for it?

Question by: Randy M on Sep 19, 2025, 7:16 PM

It matches a -16 dash size and a 1.75 inch flange head diameter, so it lines up with what you described.

Answer by: Customer Support on Sep 21, 2025, 6:09 AM

What kind of torque should I be using on this flange kit?

Question by: Randy L on Sep 28, 2025, 10:46 AM

This kit needs to be torqued between 325 and 425 pound-inches to get a good seal.

Answer by: Customer Support on Sep 30, 2025, 6:05 AM

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
