Code 61 Split Flange Kit, 1.50 (-12) Flange Head, Up to 5000.00 PSI

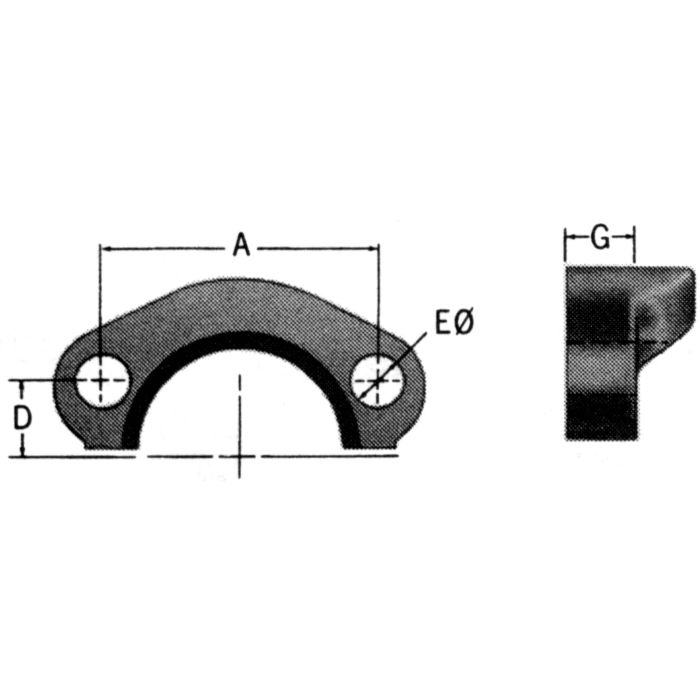

A 1.88	D 0.44	Dash Size -12	E 0.41	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 1.50	G 0.56	Maximum Operating Pressure 5000	Supplier Part Number 12SFO	Thread Sealant No	Torque Rating 225-350 lb-in	Torque Rating 225-350 lb-in	Product Weight 0.68 lbs	Alternate Part Numbers Alternate Part Number C1AJ84, Alternate Part Number FMC102-1855, Alternate Part Number MI-00347257, Alternate Part Number MINO-00054F82612

Product Questions & Answers 3

Product Questions & Answers

what all comes in the kit here and how tight do i need to get the bolts

Question by: Larry R on Jan 30, 2026, 4:56 PM

Everything required for a complete connection is right in the box. You will receive the two flange halves, four grade 8 hex bolts, four lock washers, and one 90-durometer Buna-N O-ring. Make sure to torque your hardware between 225 and 350 lb-in during installation.

Answer by: Customer Support on Feb 1, 2026, 7:40 AM

got a -12 code 61 flange head, is this kit the right size or am i mixing things up

Question by: Keith H on Jun 11, 2025, 9:42 AM

This kit is a Code 61 split flange kit in dash size -12 with a 1.50 inch flange head diameter. The package includes two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-ring.

Answer by: Customer Support on Jun 13, 2025, 9:11 AM

What size is this flange head? Just wanna make sure it'll fit right.

Question by: Roy E on Jan 3, 2026, 5:23 PM

The flange head on this split flange kit measures 1.50 inches in diameter. It's a Code 61 style, designed for systems needing robust sealing.

Answer by: Customer Support on Jan 4, 2026, 7:52 PM

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
