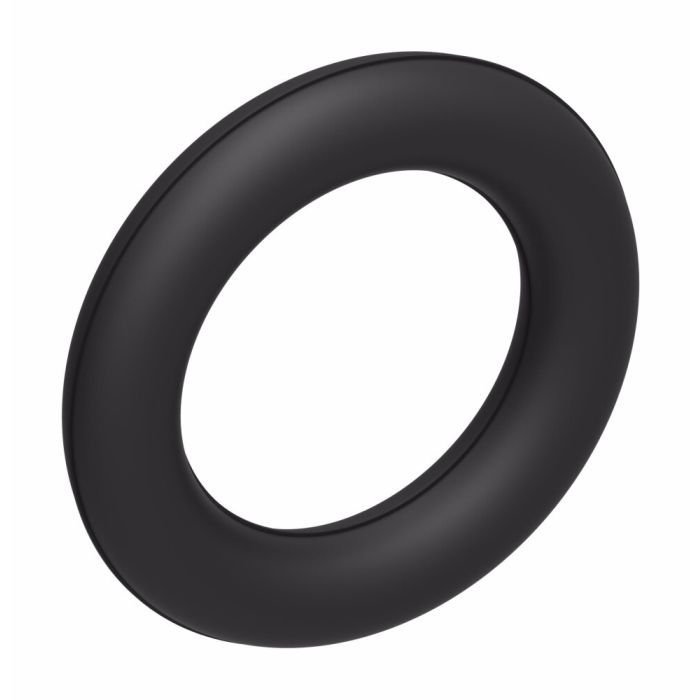

D-Ring for Caterpillar Flanges, 1.00 Inch Flange, Buna-N

Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Flange Size 1	I.D. 1.25 in	Materials Buna-N	O.D. 1.52 in	Supplier Part Number FF90319-16	Temperature Range -40 to +212	Thread Sealant No	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1EW77, Alternate Part Number MI-03077661, Alternate Part Number MINO-00015X60103

Product Questions & Answers 3

Product Questions & Answers

Will this D-ring hold up if I'm usin' it with hydraulic fluid all day long, every day?

Question by: Terry J on Jan 31, 2026, 7:26 AM

Designed for demanding hydraulic environments, this Buna-N D-ring offers consistent performance and longevity, even with continuous use and exposure to hydraulic fluids.

Answer by: Customer Support on Feb 2, 2026, 7:52 AM

Does this D-ring hold up when temps swing real hard, like from a cold startup in January to running all afternoon in the summer heat?

Question by: Rhonda H on Oct 5, 2025, 12:19 PM

Buna-N handles that range without much trouble. The material is rated from -40 up to +212 degrees Fahrenheit, so cold morning startups and sustained afternoon operation both fall well within what it can take. For most hydraulic equipment running through seasonal temperature swings, that window covers everyday use pretty comfortably.

Answer by: Customer Support on Oct 6, 2025, 9:14 PM

got a 1 inch Caterpillar flange, is this the right d-ring size for it?

Question by: Kurt S on Jan 2, 2026, 9:53 PM

For a 1.00 inch flange size, this D-ring is made to match that flange and it is the -16 dash size. The seal dimensions are 1.25 inch ID, 1.52 inch OD, and 0.14 inch width, which are what you want to line up for a proper fit.

Answer by: Customer Support on Jan 4, 2026, 12:21 PM

Similar Products

Model Number	Flange Size	Dash Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
FF90319-12	0.75	-12	Buna-N	-40 to +212	1 in	0.14	1.27 in
FF90319-16	1	-16	Buna-N	-40 to +212	1.25 in	0.14	1.52 in
FF90319-20	1.25	-20	Buna-N	-40 to +212	1.5 in	0.14	1.77 in
