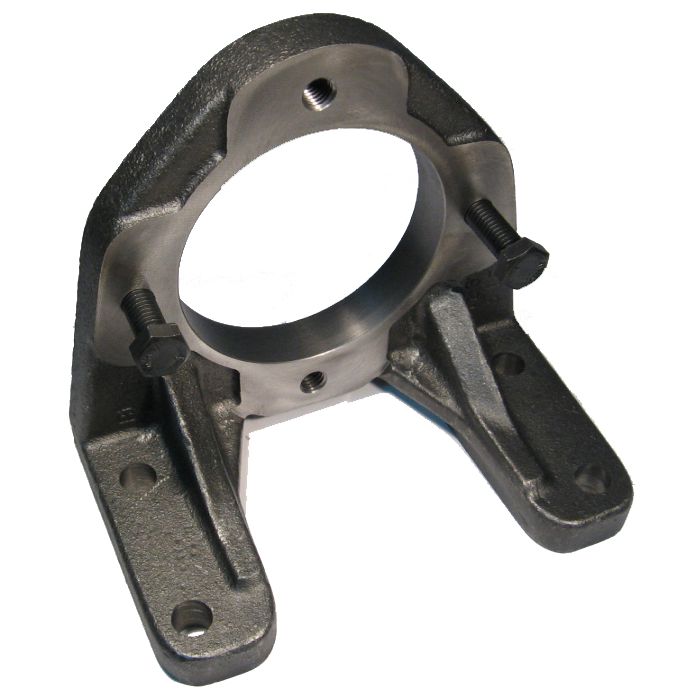

Cast Iron Pump Foot Brackets

Features	Can be used to mount pumps or motors having standard SAE-J 744 2-Bolt mounting flanges. Either pair of diametrically opposed holes may be used. Bolts are included.
Materials	Cast Iron.

Products

Part Number	Model Number	Size	Dimensions	Price	Buy Now
422583	FB-B-10	2-Bolt SAE B	A=7.12 B=3.63 C=6.75 D=3.38 E=5.75 F=1.44 G=2.88 H=.50 J=5.75 K=3.77 L=.59 M=2.00 N=.50 P=4.003 Q=.68 R=1/2-13 S=.68
422582	FB-A-10	2-Bolt SAE A	A=5.31 B=2.75 C=6.00 D=3.00 E=5.00 F=1.44 G=2.50 H=.50 J=4.19 K=3.78 L=.59 M=2.00 N=.50 P=3.253 Q=.69 R=3/8-16 S=.44
