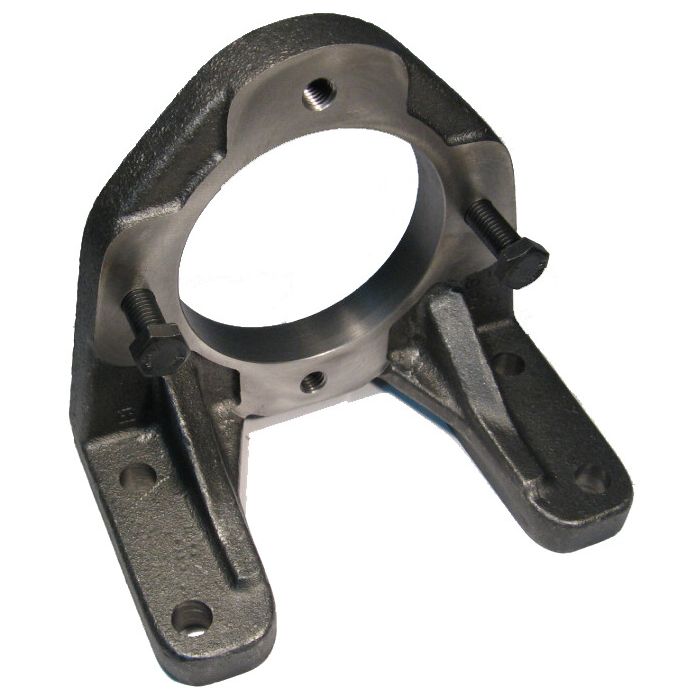

Cast Iron Pump Foot Bracket, 2-Bolt SAE B Flange

Dimensions A=7.12 B=3.63 C=6.75 D=3.38 E=5.75 F=1.44 G=2.88 H=.50 J=5.75 K=3.77 L=.59 M=2.00 N=.50 P=4.003 Q=.68 R=1/2-13 S=.68	Brand Danfoss (Power Solutions II LLC)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Size 2-Bolt SAE B	Supplier Part Number 422583	Alternate Part Numbers Alternate Part Number C1BP88, Alternate Part Number FB-B-10, Alternate Part Number FBB10	Product Weight 5.94 lbs

Product Questions & Answers 4

Product Questions & Answers

Reckon this bracket will fit my Vickers pump with a standard SAE B 2-bolt flange? Just wanna make sure before I order it up.

Question by: Tommy W on Jan 3, 2026, 8:15 AM

Absolutely, this foot bracket is designed specifically for mounting pumps or motors that have the standard SAE-J 744 2-bolt mounting flanges, so it should be a good fit for your Vickers pump.

Answer by: Customer Support on Jan 5, 2026, 6:36 AM

does this bracket work with standard SAE B 2-bolt pumps or is it only for certain brands

Question by: Rod M on Dec 24, 2025, 6:34 AM

Any pump or motor built to the SAE-J 744 2-bolt mounting flange standard will fit this bracket. It's not brand-specific, so as long as your equipment matches that flange spec, you're good to go. The model here is the FB-B-10, made from cast iron, and it comes with the mounting bolts included so you're not scrambling for hardware on install day.

Answer by: Customer Support on Dec 26, 2025, 8:27 AM

got a pump with an SAE J744 2-bolt B flange, is this foot bracket the right mount for it?

Question by: Brett C on Jul 1, 2025, 6:50 AM

For SAE-J 744 2-bolt mounting flanges in the SAE B size, this bracket is made to serve as the mounting foot for a pump or motor. It uses the standard 2-bolt flange pattern, and you can use either pair of diametrically opposed holes depending on how you need to clock it.

Answer by: Customer Support on Jul 3, 2025, 6:13 AM

Will this bracket work with any SAE B flange pump?

Question by: Steve R on Jul 19, 2025, 6:00 PM

This cast iron foot bracket is designed to fit pumps or motors that use the standard SAE-J 744 2-bolt mounting flange.

Answer by: Customer Support on Jul 21, 2025, 2:27 PM

Similar Products

Part Number	Model Number	Size	Dimensions	Price	Buy Now
422583	FB-B-10	2-Bolt SAE B	A=7.12 B=3.63 C=6.75 D=3.38 E=5.75 F=1.44 G=2.88 H=.50 J=5.75 K=3.77 L=.59 M=2.00 N=.50 P=4.003 Q=.68 R=1/2-13 S=.68
422582	FB-A-10	2-Bolt SAE A	A=5.31 B=2.75 C=6.00 D=3.00 E=5.00 F=1.44 G=2.50 H=.50 J=4.19 K=3.78 L=.59 M=2.00 N=.50 P=3.253 Q=.69 R=3/8-16 S=.44
