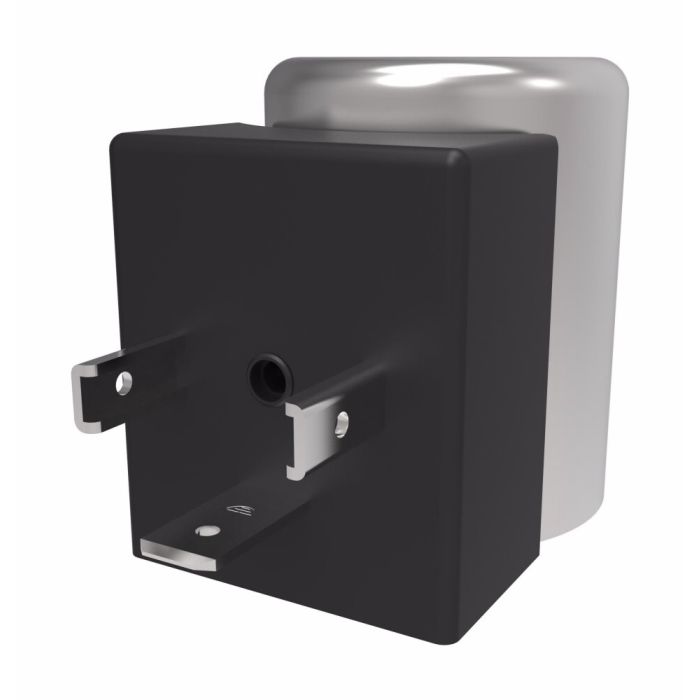

Cartridge Valve Coil, J Series 20 Watt, 24VDC, DIN 43650. Internally rectified|Compact design|Continuous duty

Application Harvesters, refuse haulers, mobile and industrial applications	Coil Size 10,12,16 and 20	Connector Type DIN 43650	Duty Rating Continuous from 85% to 110% of nominal voltage	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Encapsulent Glass filled nylon	Environmental Protection IP65	Features Internally rectified\|Compact design\|Continuous duty	Flying Leads Integrated	Hazardous Environmental Rating Yes	Installation Type Drop-in	Leakage Standard	Operation Electrically Operated	Pressure level valve control 210	Series J Series 20 Watt	Special Features None	Style Toughcoil	Supplier Part Number 300AA00082A	Voltage 24VDC	Voltage Type 12307	Product Weight 0.59 lbs	Alternate Part Numbers Alternate Part Number C1JY59

Product Questions & Answers 2

Product Questions & Answers

got a 24VDC setup on a harvester, is this coil the right kind or is it for AC

Question by: Wade P on Dec 5, 2025, 2:34 PM

Good fit for a 24VDC circuit since it is a DC voltage coil. It is also internally rectified and uses a DIN 43650 connector.

Answer by: Customer Support on Dec 7, 2025, 8:04 AM

Will this here coil work on my refuse hauler?

Question by: Ross H on Dec 12, 2025, 8:17 AM

This cartridge valve coil is indeed suitable for demanding environments like refuse haulers, ensuring reliable performance.

Answer by: Customer Support on Dec 13, 2025, 12:49 PM

Similar Products

Part Number	Model Number	Series	Voltage	Connector Type	Features
02-178104	SC024SPJ00	J Series 20 Watt	24VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178106	SC120APJ00	J Series 20 Watt	120VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00009A	MCSCS012DQ000010	S Series 20 Watt	12VDC	1/4" Spade	Internally rectified\|Compact design\|Continuous duty
300AA00081A	MCSCJ012DG000010	J Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00082A	MCSCJ024DG000010	J Series 20 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00085A	MCSCJ115AG000010	J Series 20 Watt	120VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507848	507848	R Series 30 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
02-178078	SC012DPJ00	J Series 20 Watt	12VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178079	SC024DPJ00	J Series 20 Watt	24VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00001A	MCSCS012DG000010	S Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00005A	MCSCS115AG000010	S Series 20 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00042A	MCSCP024DG000010	P Series 23 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00045A	MCSCP115AG000010	P Series 23 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00046A	MCSCP230AG000010	P Series 23 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00086A	MCSCJ230AG000010	J Series 20 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00095A	MCSCJ012DW0B0010	J Series 20 Watt	12VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00096A	MCSCJ024DW0B0010	J Series 20 Watt	24VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00121A	MCSCH012DG000010	H Series 26 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00122A	MCSCH024DG000010	H Series 26 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507847	507847	R Series 30 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
