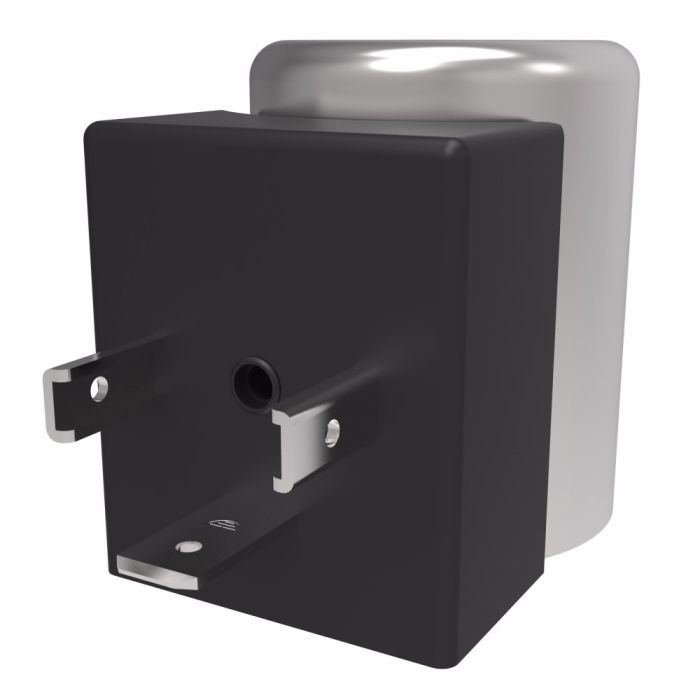

Cartridge Valve Coil, P Series 23 Watt, 230VAC, DIN 43650. Internally rectified|Compact design|Continuous duty

Application Harvesters, refuse haulers, mobile and industrial applications	Coil Size 8	Connector Type DIN 43650	Duty Rating Continuous from 85% to 110% of nominal voltage	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Encapsulent Glass filled nylon	Environmental Protection IP65	Features Internally rectified\|Compact design\|Continuous duty	Flying Leads Integrated	Hazardous Environmental Rating Yes	Installation Type Drop-in	Leakage Standard	Operation Electrically Operated	Pressure level valve control 350	Series P Series 23 Watt	Special Features None	Style Toughcoil	Supplier Part Number 300AA00046A	Voltage 230VAC	Voltage Type 12306	Product Weight 0.31 lbs	Alternate Part Numbers Alternate Part Number C1LX17

Product Questions & Answers 1

Product Questions & Answers

got a C1LX17 coil on the machine now. is this the same one, 230 volt and all?

Question by: Wayne P on Jun 2, 2025, 7:04 PM

Match-up is by catalog number and basics. This coil is Eaton Vickers catalog number C1LX17, it runs on 230VAC, and it uses a DIN 43650 connector.

Answer by: Customer Support on Jun 4, 2025, 6:55 AM
