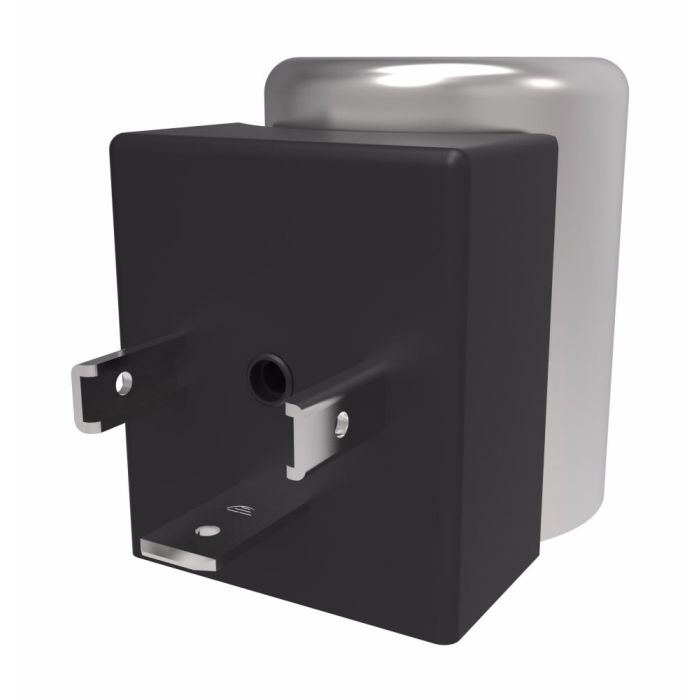

Cartridge Valve Coil, P Series 23 Watt, 115VAC, DIN 43650. Internally rectified|Compact design|Continuous duty

Application Harvesters, refuse haulers, mobile and industrial applications	Coil Size 8	Connector Type DIN 43650	Duty Rating Continuous from 85% to 110% of nominal voltage	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Encapsulent Glass filled nylon	Features Internally rectified\|Compact design\|Continuous duty	Flying Leads Integrated	Operation Electrically Operated	Pressure level valve control 350	Series P Series 23 Watt	Special Features None	Style Toughcoil	Supplier Part Number 300AA00045A	Voltage 115VAC	Voltage Type 12306	Product Weight 0.50 lbs	Alternate Part Numbers Alternate Part Number C1LX16

Product Questions & Answers 2

Product Questions & Answers

coil says continuous duty but what voltage range does it actually hold up through without cutting out on me

Question by: Todd R on Apr 19, 2025, 6:52 AM

Rated for continuous operation anywhere between 85% and 110% of the nominal 115VAC. So you've got some real-world wiggle room on both ends without losing reliable function. That range is built into the duty rating, not just a listed ideal.

Answer by: Customer Support on Apr 20, 2025, 10:51 AM

Will this fit in place of a C1LX16 coil?

Question by: Brenda P on Oct 12, 2025, 2:06 PM

This coil is a direct replacement for the Eaton Vickers C1LX16.

Answer by: Customer Support on Oct 14, 2025, 9:30 AM

Similar Products

Part Number	Model Number	Series	Voltage	Connector Type	Features
02-178104	SC024SPJ00	J Series 20 Watt	24VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178106	SC120APJ00	J Series 20 Watt	120VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00009A	MCSCS012DQ000010	S Series 20 Watt	12VDC	1/4" Spade	Internally rectified\|Compact design\|Continuous duty
300AA00081A	MCSCJ012DG000010	J Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00082A	MCSCJ024DG000010	J Series 20 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00085A	MCSCJ115AG000010	J Series 20 Watt	120VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507848	507848	R Series 30 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
02-178078	SC012DPJ00	J Series 20 Watt	12VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178079	SC024DPJ00	J Series 20 Watt	24VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00001A	MCSCS012DG000010	S Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00005A	MCSCS115AG000010	S Series 20 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00042A	MCSCP024DG000010	P Series 23 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00045A	MCSCP115AG000010	P Series 23 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00046A	MCSCP230AG000010	P Series 23 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00086A	MCSCJ230AG000010	J Series 20 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00095A	MCSCJ012DW0B0010	J Series 20 Watt	12VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00096A	MCSCJ024DW0B0010	J Series 20 Watt	24VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00121A	MCSCH012DG000010	H Series 26 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00122A	MCSCH024DG000010	H Series 26 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507847	507847	R Series 30 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
