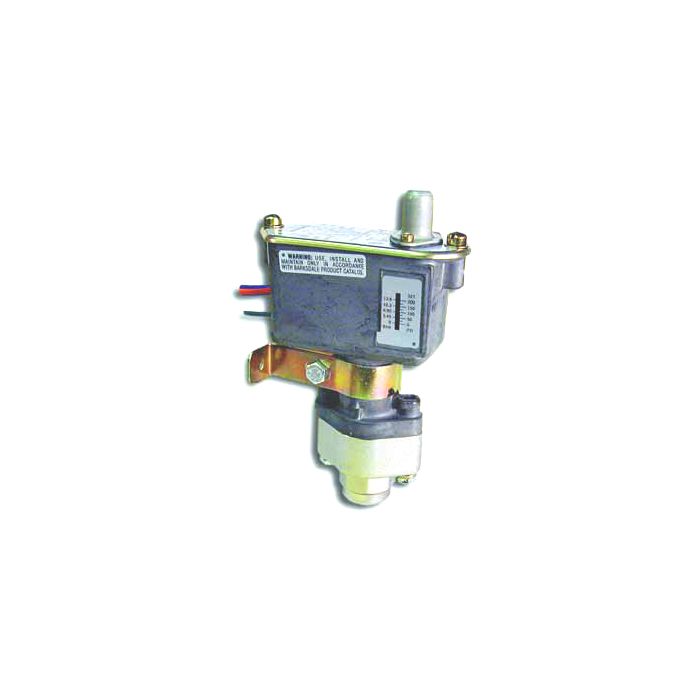

C9612 Series Single Pressure Switches
Accuracy |
± 2% of the adjustable range. |
Features |
Sealed Piston • Extremely Long Life • Oil & Dust Tight • Easy Setpoint Adjustment • High Reliability • High Proof Pressure • Anodized aluminum enclosure • Tamper-proof adjustment screw cover • Nema 3 rated. |
Identification |
Purple = Common, Red = NO, Blue = NC. |
Materials |
Nickel plated aluminum process fitting. Buna-N o-ring (standard). 416 stainless steel piston. Anodized aluminum enclosure. |
Ports |
1/4-18 NPT Female. |
Switch Rating |
10 Amps @ 125, 250, or 480 VAC. 0.3 Amps @ 250 VDC. Class B limit switch. |
Switch Type |
SPDT snap action, single circuit. |
Temperature Range |
-20°F to 165°F. |
Products
| Model Number | Adjustable Range | Apprx. Deadband (PSI) | Maximum Pressure | Price | Buy Now |
|---|---|---|---|---|---|
| C9612-3 | Increasing: 280 Min, 3000 Max; Decreasing: 250 Min, 2650 Max | 30-350 | 7000 |
|
