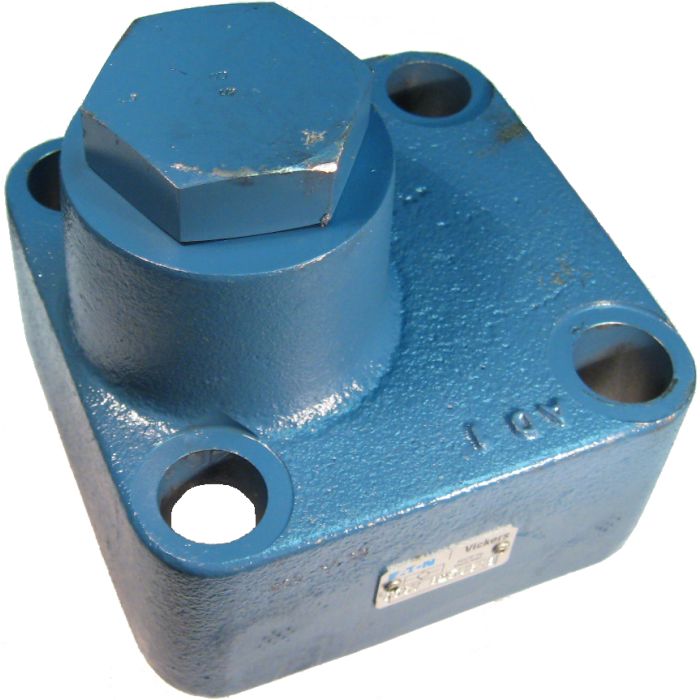

C5G(V) Series Subplate/Manifold Mount Check Valves, Up To 5000 PSI, Up To 100 GPM
Group Description |
Subplate mounted check valve, allows flow in one direction only. Can be used with hydraulic oils, water-in-oil emulsions and water glycols. |
Recommended Filtration |
ISO 4406 Cleanliness Level 20/18/15 or cleaner. |
Temperature Range |
-4°F to 176°F. |
Products
| Part Number | Model Number | Size | Rated Flow | Pressure Rating | Cracking Pressure (psi) | Seal Material | Features | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| 614374 | C5GV-825UG | 1-1/4 | 100 | 5000 | 5 | Buna-N | Stability under pressure|Minimal maintenance|Stop leaks before they start |
|
|
| 614382 | C5GV-825UG-S8 | 1-1/4 | 100 | 5000 | 75 | Buna-N | Stability under pressure|Minimal maintenance|Stop leaks before they start |
|
