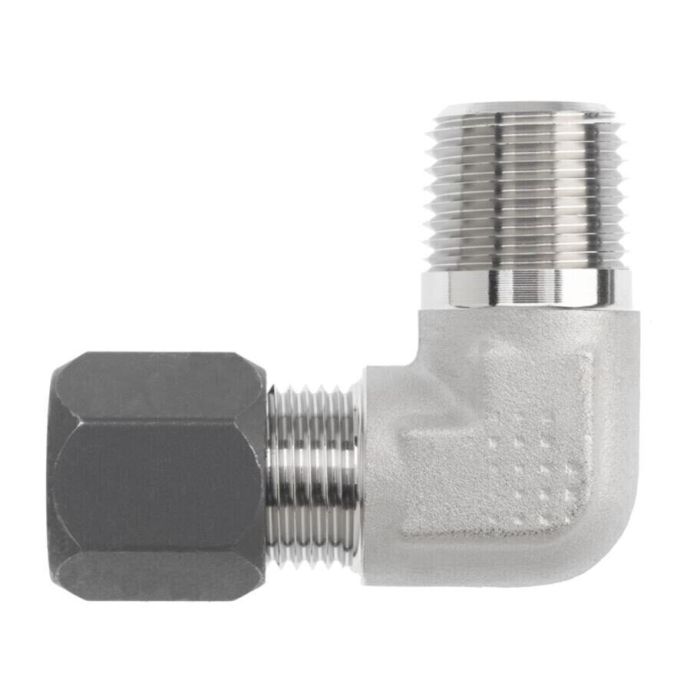

06BT-04MP 90 ELB

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2501-06-04-FG	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to replace an elbow on a skid, is this the one that goes from 3/8 tube to 1/4 npt male?

Question by: Diane T on May 19, 2025, 10:11 AM

The tube side is a 3/8 in. tube OD connection with 9/16-18 male JIC threads, and the pipe side is a 1/4-18 NPTF male pipe thread. It is a 90 degree elbow, so it makes that right-angle transition between those two ends.

Answer by: Customer Support on May 21, 2025, 6:15 AM

Got a 3/8 tube line that needs to make a right-angle turn before threading into a 1/4-18 NPTF port, this the fitting that handles that?

Question by: Eddie M on Feb 22, 2026, 8:49 AM

That's what this one's built for. The 06BT-04MP pairs a 9/16-18 male JIC tube end for 3/8 in. OD tubing with a 1/4-18 NPTF male pipe thread, all in a 90-degree forged body. The overall footprint is pretty tight too, 1.05 in. on the pipe end and 1.09 in. on the tube end, so it fits well in close-quarters hydraulic connections without a lot of wasted space.

Answer by: Customer Support on Feb 23, 2026, 5:22 PM

What size tubing does this elbow work with? Just wanna make sure its gonna fit right.

Question by: Hugh H on Apr 29, 2025, 7:23 AM

This elbow fitting is designed for a 3/8 inch OD tube.

Answer by: Customer Support on Apr 30, 2025, 8:50 AM
