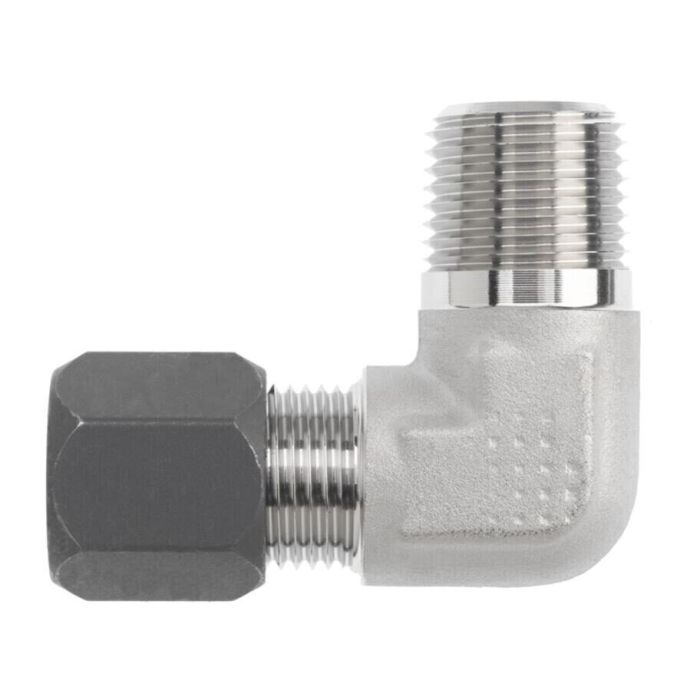

04BT-04MP 90 ELB

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2501-04-04-FG	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

what tube size does this elbow work with, and is that 1/4-18 thread on the pipe end a standard NPTF fitting?

Question by: Glen H on Sep 7, 2025, 9:54 PM

The pipe end runs a 1/4-18 NPTF thread, which is a standard tapered pipe thread size you'll find on a lot of hydraulic valves, manifolds, and ports. The tube side handles a 1/4 inch O.D. tube with a 7/16-20 thread on the B1 end. So if you're running quarter-inch tubing and need to tie into a 1/4 NPTF port at a right angle, this fitting covers both ends of that connection.

Answer by: Customer Support on Sep 9, 2025, 4:29 PM

trying to swap out an elbow on a 1/4 tube line. is this the one with 1/4-18 nptf on one side and 7/16-20 on the other?

Question by: Dwayne H on May 1, 2025, 12:58 PM

The A2 side is 1/4-18 NPTF and the B1 side is 7/16-20, and it is sized for 1/4 inch tube O.D. on the tube end.

Answer by: Customer Support on May 3, 2025, 9:27 AM

So this here is a 90-degree elbow, right? What kinda threads we talkin' about on each end?

Question by: Lynn O on Oct 8, 2025, 9:48 PM

You've got a 1/4-18 A2 NPTF thread on one side, and a 7/16-20 B1 thread on the other.

Answer by: Customer Support on Oct 10, 2025, 6:31 AM
