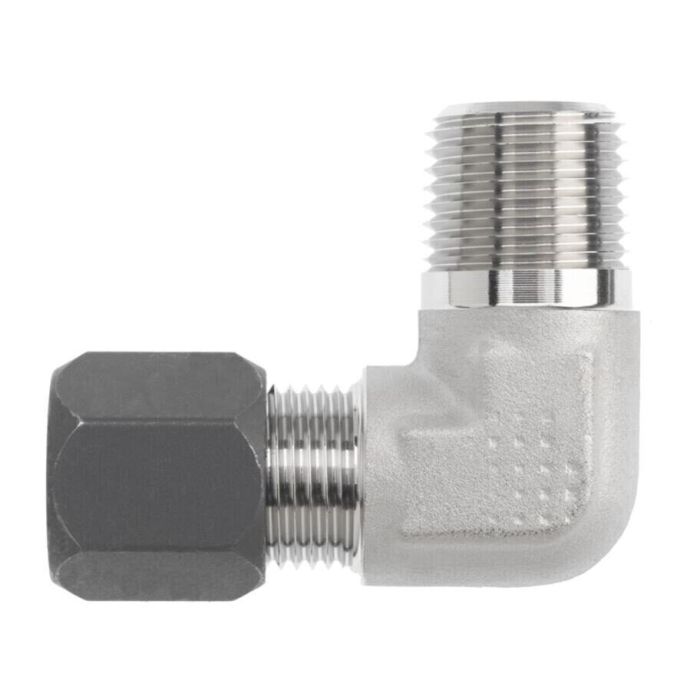

03BT-02MP 90 ELB

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2501-03-02-FG	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

I need to make a 90-degree turn with some tubing in a tight spot. Is this elbow fitting pretty compact?

Question by: Diane E on Dec 19, 2025, 1:23 PM

Yes, this 90-degree elbow is forged to allow for routing changes in hydraulic tube lines where space is at a premium. Its dimensions, including an M length of 0.830 in., N length of 0.720 in., and K depth of 0.234 in., help ensure it fits.

Answer by: Customer Support on Dec 20, 2025, 6:25 PM
