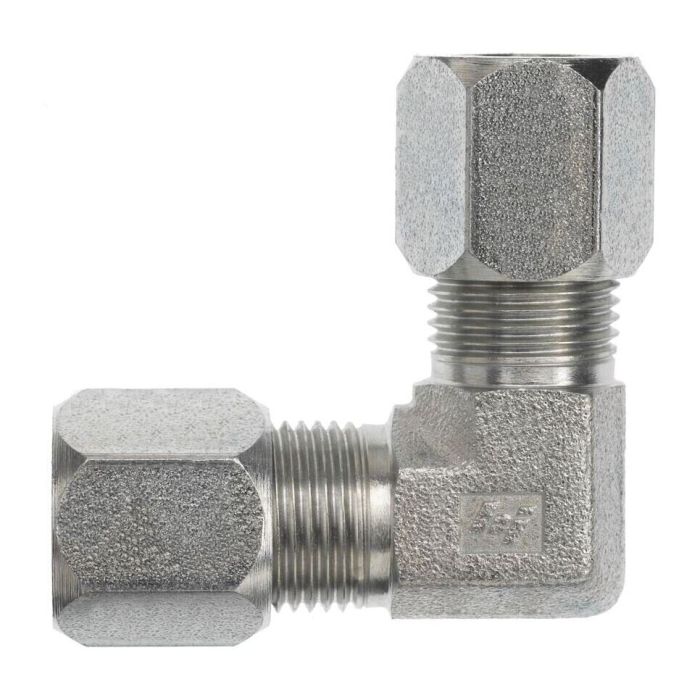

24BT-24BT 90 DEG ELBOW FORGED

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2500-24-24-FG	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

What size tubing is this elbow made to work with, and what's the thread spec on both ends?

Question by: Sherry B on Mar 4, 2026, 12:56 PM

Both ports are sized for 1-1/2 inch OD tubing and carry a 1-7/8-12 thread on each end. The drill diameter on both sides is 1.344 inches, and each port has a seating depth of 0.485 inches. Since both ends are identical, you're working with a symmetrical fitting, which makes orientation a non-issue during installation.

Answer by: Customer Support on Mar 6, 2026, 6:49 AM

trying to match up an old elbow, is this one a 1-7/8-12 thread on both ends?

Question by: Rhonda R on Jul 13, 2025, 5:51 PM

Both ends are listed with a 1-7/8-12 thread, and it is a 90 degree forged elbow with the same size on each side (24BT to 24BT).

Answer by: Customer Support on Jul 14, 2025, 8:12 PM
