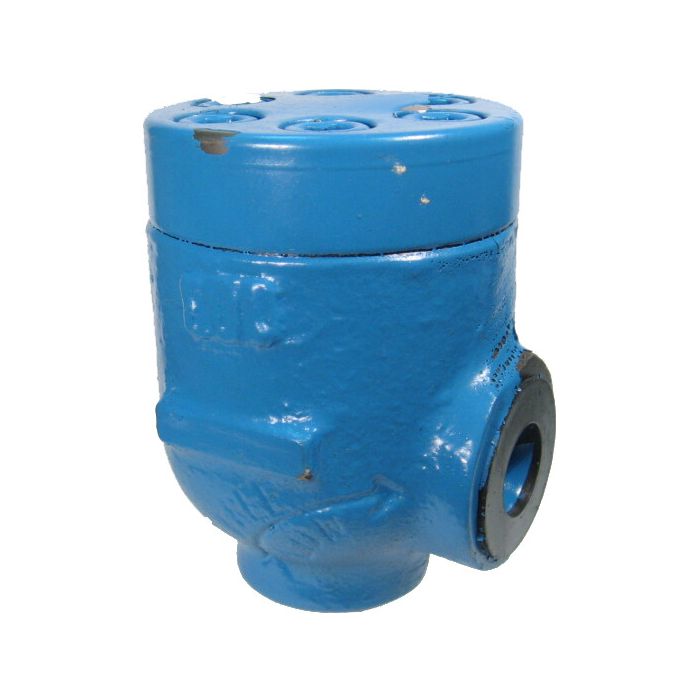

C2-8 Series Right Angle Check Valve, 3/4 NPT Ports, 5 PSI Cracking Pressure, Up To 16.00 GPM

Application Die casting & foundry,Machine tool,Marine/Offshore,Press,Primary metal,paper,Test equipment & simulation,Turbine control (wind, steam, water)	Cracking Pressure .3 b	Cracking Pressure (psi) 5	Dimensions A=3.88 B=1.75 C=2.00 D=2.75 E=1.81 F=3.19	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Pack Size 1.00	UOM EA	Features Stability under pressure\|Minimal maintenance\|Stop leaks before they start	Leakage Standard	Operation Direct Acting	Peak Pressure Drop 20	Ports 3/4 NPT	Rated Flow 16	Recommended Filtration Level 20/18/15 microns	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Supplier Part Number 94029	Alternate Part Numbers Alternate Part Number C1HH55, Alternate Part Number C2815	Product Weight 4.49 lbs

Product Questions & Answers

got a tight spot on my manifold, what are the port threads on this right angle check valve

Question by: Floyd B on Jun 26, 2025, 12:54 PM

For fit-up, it uses 3/4 NPT ports and the body is a right angle style, which helps when you need to turn flow 90 degrees without extra fittings.

Answer by: Customer Support on Jun 27, 2025, 3:42 PM

Part Number	Model Number	Ports	Cracking Pressure (psi)	Rated Flow	Peak Pressure Drop	Seal Material	Dimensions	Price	Buy Now
094029	C2-815	3/4 NPT	5	16	20	Buna-N	A=3.88 B=1.75 C=2.00 D=2.75 E=1.81 F=3.19
