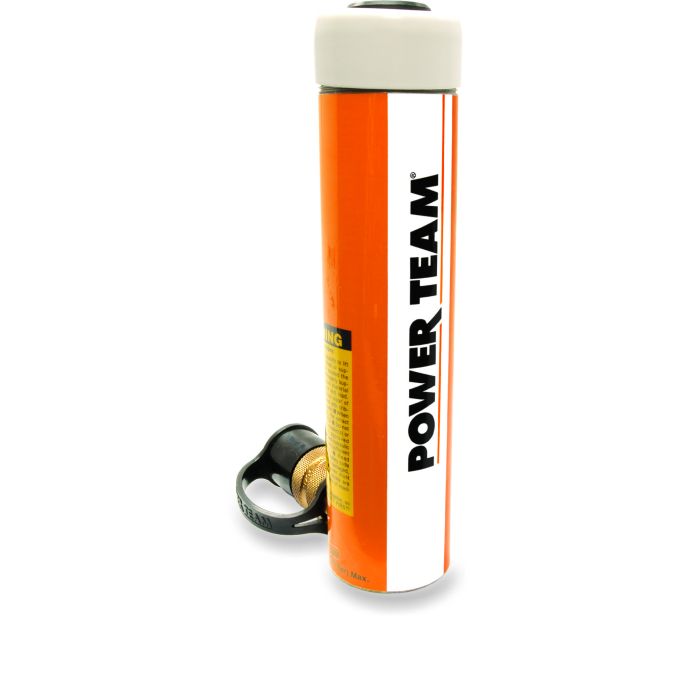

C Series General Purpose Single-Acting Cylinders, 5-100 Ton

Group Description

Rugged, high quality cylinder used for lifting and pressing. ASME B30.1 10,000 PSI.

Features

Aluminum bronze bearing reduces wear caused by off-center loads • Maximum sized springs speed piston return and increase spring life • Solid steel cylinder body for durability • Chrome plated piston rod resists wear and corrosion • Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base • Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders • A 3/8'' NPTF female half coupler is standard.

Products

Model Number	Capacity (tons)	Extended Height	Cylinder Effective Area (sq in)
C1006C	100	19.875	20.62
C1010C	10	23.875	2.236
C101C	10	4.625	2.236
C102C	10	6.875	2.236
C104C	10	10.875	2.236
C106C	10	15.875	2.236
C108C	10	19.875	2.236
C152C	15	8	3.142
C154C	15	12	3.142
C156C	15	16.813	3.142
C2514C	25	33	5.15
C252C	25	8.5	5.15
C254C	25	12.5	5.15
C256C	25	17	5.15
C258C	25	21	5.15
C51C	5	5.438	0.994
C53C	5	9.75	0.994
C5513C	55	31.375	11.04
C554C	55	13.375	11.04
C556C	55	17.375	11.04
C57C	5	18	0.994
C59C	5	22	0.994
C55C	5	13.75	0.994
