Adaptall Bspt X Npt Nipple 2596239

Specifications

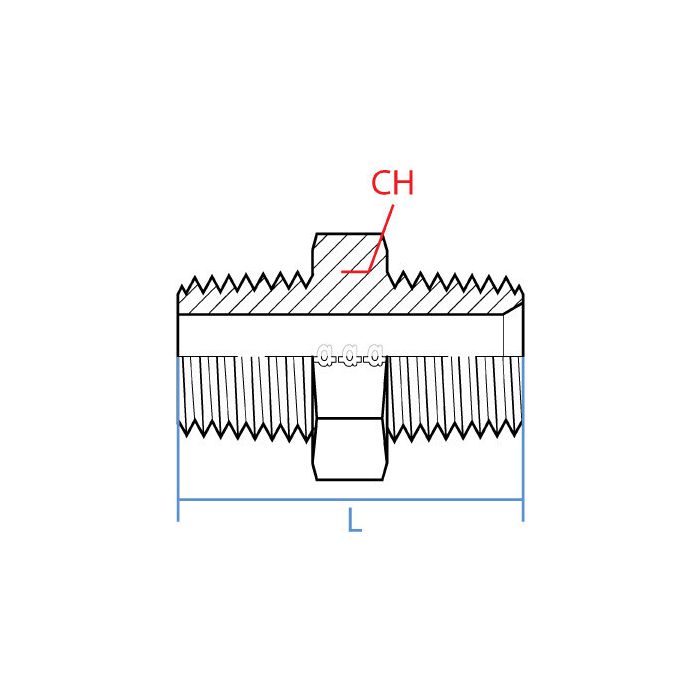

CH Width 14mm	L Length 37.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspt	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9008-04-04	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this nipple work to connect a BSPT fitting to an NPT one?

Question by: Norm H on Nov 10, 2025, 4:57 PM

That's exactly what this Adaptall nipple is for. It has a 1/4" BSPT male end and a 1/4" NPT male end, so it'll bridge that gap for you.

Answer by: Customer Support on Nov 12, 2025, 8:51 AM

trying to hook a BSPT port to a NPT line, is this the right little nipple for that?

Question by: Kurt B on Sep 10, 2025, 10:00 AM

For joining those two thread types, it gives you a 1/4 inch BSPT male on one side (R 1/4 - 19) and a 1/4 inch NPTF male on the other (1/4 - 18), in a straight steel nipple.

Answer by: Customer Support on Sep 11, 2025, 1:53 PM

both ends on this are 1/4 inch, but one's BSPT and the other's NPT, that right? just wanna make sure before I order

Question by: Wes E on Dec 23, 2025, 9:30 PM

That's how it's set up. One end is 1/4" BSPT male with an R 1/4-19 thread spec, and the other end is 1/4" NPT male running a 1/4-18 NPTF callout. Both are male, so keep that in mind when you're planning your connection points.

Answer by: Customer Support on Dec 25, 2025, 1:22 PM
