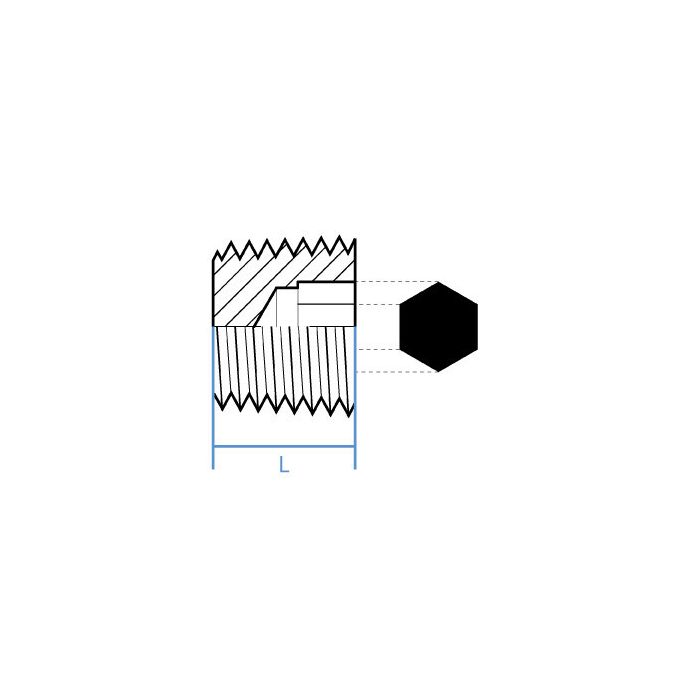

Bspt Hex Countersunk Plug

CH Width
9.5mm
L Length
8mm
Adaptall Material
Steel
Adaptall Shape
Plug
Side 1 Callout
R 1/8 - 28
Side 1 Gender
M
Side 1 Size
1/8"
Side 1 Type
Bspt
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9030TCSP-02
Product Weight
0.01 lbs

Product Questions & Answers

What size wrench do I need for these plugs? Looks like a pretty tight spot where I need to use it.
Question by: Wayne W on Nov 12, 2025, 12:35 PM
For the BSPT Hex Countersunk Plug, you'll need a 9.5mm wrench. Its design allows for easy installation and removal, even when space is limited.
Answer by: Customer Support on Nov 14, 2025, 6:54 AM
Got a port that needs to be capped off on a hydraulic manifold, this plug rated for that kind of use, and will the 1/8 BSPT thread actually match up right?
Question by: Shane B on Dec 30, 2025, 9:17 PM
For standard 1/8" BSPT ported manifolds, yes, this should seat properly. The thread spec is R 1/8 - 28, which is the male BSPT designation, so as long as your manifold port is a matching female BSPT connection, you'll get a solid fit. Steel construction holds up well in hydraulic manifold applications, and the hex countersunk profile means you can torque it down without needing much clearance around the port.
Answer by: Customer Support on Jan 1, 2026, 6:03 AM
trying to plug a port on a hydraulic manifold, is this the one with the 1/8 BSPT male thread?
Question by: Clint C on Mar 9, 2026, 4:05 PM
For a BSPT port that takes an R 1/8 - 28 male thread, this plug matches that size and thread callout. It is a steel hex countersunk plug meant to seal off that type of connection.
Answer by: Customer Support on Mar 11, 2026, 7:09 AM
