Bsp Female Tee (Fixed)

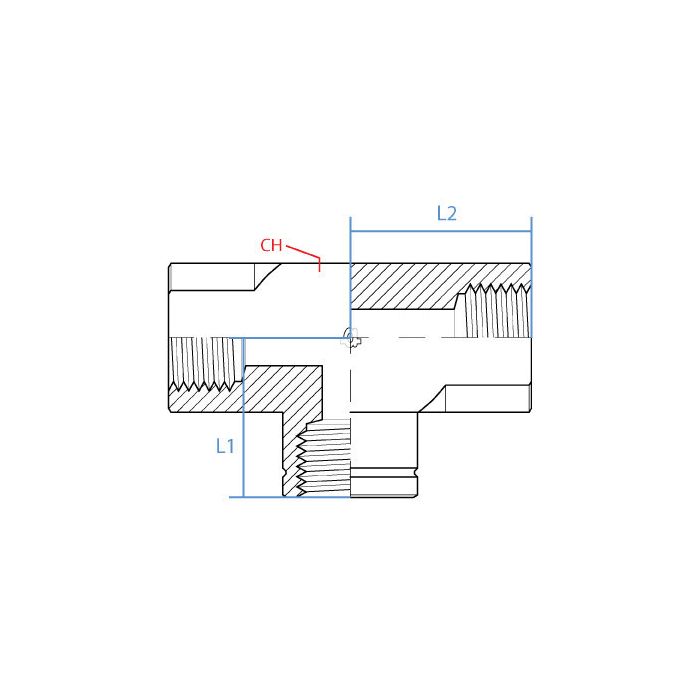

CH Width 14mm	L1 Length 19mm	L2 Length 19mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1/8 - 28	Side 1 Gender F	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Side 3 Callout G 1/8 - 28	Side 3 Gender F	Side 3 Size 1/8"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9086-02-02-02	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

What size threads does this tee use? Just want to make sure it matches what I got already.

Question by: Clint B on May 19, 2025, 9:33 AM

It uses G 1/8-28 BSPP female threads on all three ports, so it's made to fit any male-threaded part with the same spec.

Answer by: Customer Support on May 20, 2025, 4:59 PM

got three 1/8 bsp ports to tie together, is this tee the one where all the threads match?

Question by: Roger D on Aug 5, 2025, 5:16 PM

All three ports are the same thread, G 1/8-28 BSPP female on each side, so it mates with matching G 1/8-28 BSPP male fittings on all three connections.

Answer by: Customer Support on Aug 7, 2025, 3:27 PM
