Style 1850 Bronze Filled PTFE Piston Seals
Materials |
Bronze filled PTFE Seal. Rubber Energizer. |
Note |
Piston diameter ''F'' dimensions are given for pistons without wear. Interchangeable with the PS1800 style piston seal. |
Pressure Range |
0 to 5000 PSI |
Temperature Range |
-40°F to +220°F |
Products

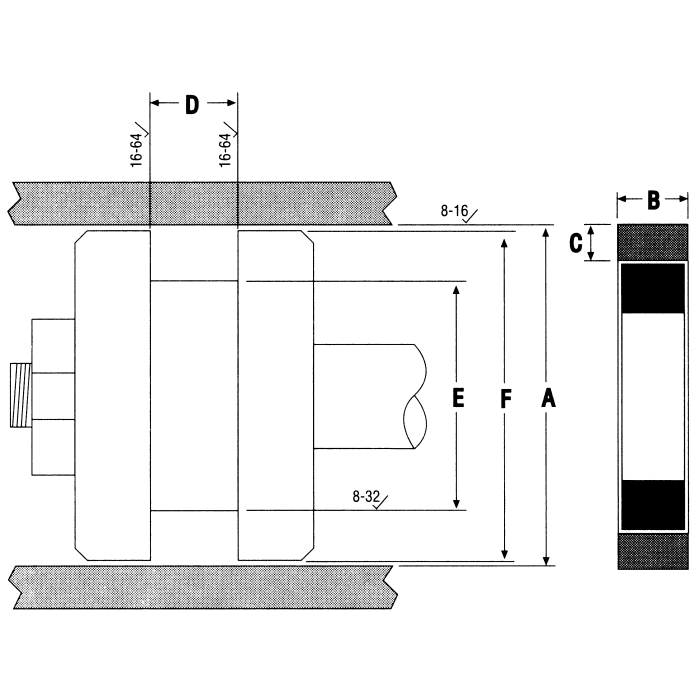

| Model Number | Bore | Seal Height B | Seal Cross Section C | Groove Width D | Groove Dia. E | Piston Dia. F | Bore Tolerance (in) | Piston Dia. Tolerance (in) | Cross Section Tolerance (in) | Groove Width Tolerance (in) | Seal Height Tolerance (in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PS1850-48 | 3 | 0.269 | 0.087 | 2.44 | 2.999 | +0.002/-0 | +0/-0.006 | +0.006 / -0 | ±0.002 | +0.005 / -0 |
|
||
| PS1850-96 | 6 | 0.362 | 0.142 | 5.238 | 5.999 | +0.002/-0 | +0/-0.007 | ±0.005 | ±0.002 | +0.005 / -0 |
|
