Style PSC Bronze Filled Piston Seals
Materials |
40% bronze filled PTFE seal, rubber energizer and quattro ring. |
Note |

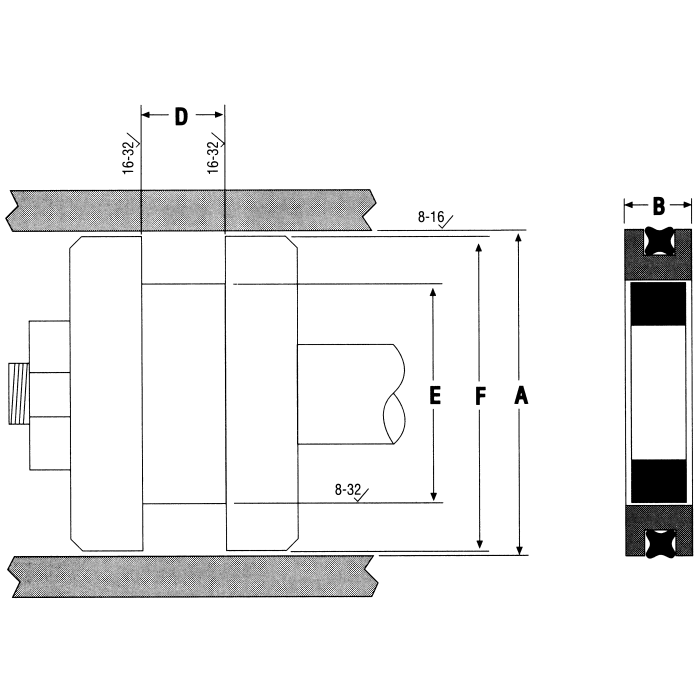

Piston diameter F dimensions are given for pistons without wear rings. |
Pressure Range |
0 to 5,000 PSI. |
Temperature Range |
-40°F to 220°F. |
Products
| Model Number | Bore | Seal Height B | Groove Width D | Groove Dia. E | Piston Dia. F | Bore Tolerance (in) | Groove Width Tolerance (in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| PSQ-40 | 2.5 | 0.271 | 1.884 | 2.499 | +0.004/-0 | +0.005 / -0 |
|
||
| PSQ-48 | 3 | 0.271 | 2.384 | 2.999 | +0.004/-0 | +0.005 / -0 |
|
||
| PSQ-56 | 3.5 | 0.271 | 2.884 | 3.499 | +0.004/-0 | +0.005 / -0 |
|
||
| PSQ-64 | 4 | 0.271 | 3.384 | 3.999 | +0.004/-0 | +0.005 / -0 |
|
||
| PSQ-80 | 5 | 0.271 | 4.384 | 4.999 | +0.004/-0 | +0.005 / -0 |
|
