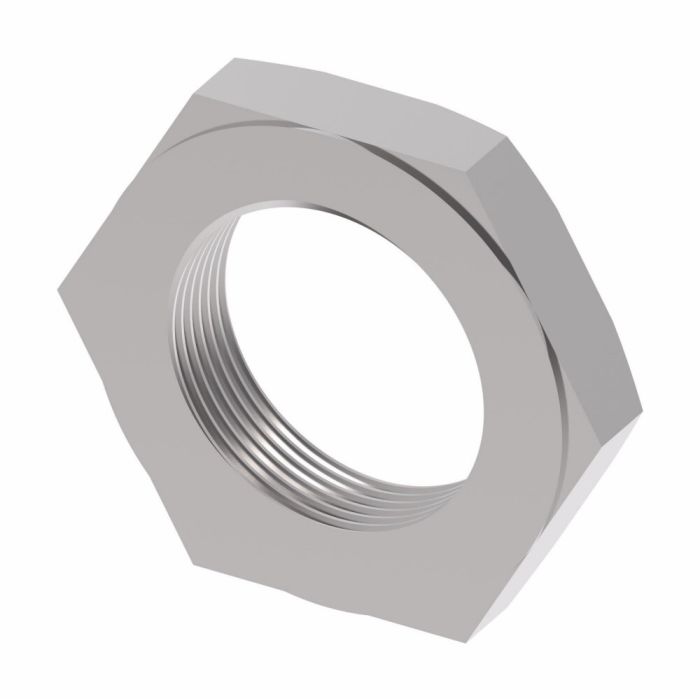

Steel Adapter, 1.00 Braze Tube To 1-7/16-12 Female O-Ring Face Seal Nut

A
1.10
Alternate Part Numbers
Alternate Part Number C1EP99
E
1.14
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Finish
Zinc Clear Trivalent Chromate
Materials
Carbon steel
Series
FC2326
Supplier Part Number
FC2326-16S
Thread 1
1-7/16-12
Thread Sealant
No
Tube O.D.
1
Tube O.D.
1
Type
Swivel Nuts
Product Weight
0.26 lbs

Product Questions & Answers

Hey, can this adapter handle high pressure hydraulic systems or is it more for lighter duty stuff?
Question by: Johnny R on Jun 12, 2025, 8:28 PM
This steel adapter is designed for demanding hydraulic applications, ensuring a secure connection between a 1.00 braze tube and a 1-7/16-12 female O-ring face seal nut.
Answer by: Customer Support on Jun 14, 2025, 6:16 AM
trying to figure out if this is the right part to replace the nut on my FC2326 fitting, is this actually a Danfoss/Eaton FC2326 series component?
Question by: Travis M on Oct 7, 2025, 9:55 PM
Yeah, that's exactly what it is. Part of the Eaton Aeroquip FC2326 series, sold specifically as a spare part nut for that line. The SKU is FC2326-16S and it also carries catalog number C1EP99, so if you're cross-referencing against a Danfoss or Eaton parts list, either of those should get you where you need to go.
Answer by: Customer Support on Oct 9, 2025, 8:39 AM
trying to replace a nut on an Aeroquip line, is FC2326-16S the one that goes from a 1.00 braze tube to a 1-7/16-12 female ORFS?
Question by: Ralph B on Mar 23, 2026, 8:05 AM
Match it up by the end connections. FC2326-16S is a steel adapter in the Eaton Aeroquip FC2326 series that connects a 1.00 braze tube on one side to a 1-7/16-12 female O-ring face seal nut on the other.
Answer by: Customer Support on Mar 24, 2026, 3:40 PM

Similar Products

Model Number Tube O.D. Thread 1 A E Price Buy Now
FC2326-06S 0.38 11/16-16 0.67 0.53
FC2326-08S 0.5 13/16-16 0.83 0.65
FC2326-10S 0.63 1-14 0.92 0.83
FC2326-16S 1 1-7/16-12 1.1 1.14
