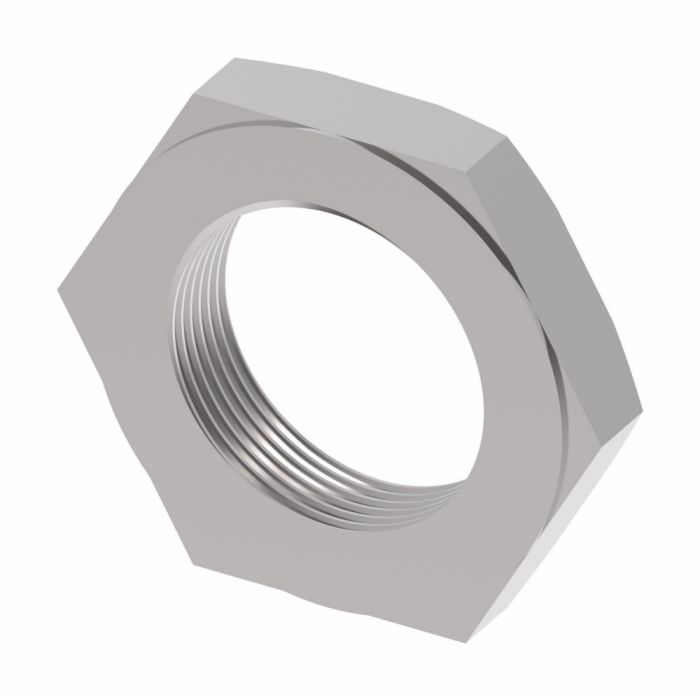

Steel Adapter, 0.50 Braze Tube To 13/16-16 Female O-Ring Face Seal Nut

A 0.83	Alternate Part Numbers Alternate Part Number C1EP96, Alternate Part Number MI-00444208, Alternate Part Number MINO-00015I00775	E 0.65	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Finish Zinc Clear Trivalent Chromate	Materials Carbon steel	Series FC2326	Supplier Part Number FC2326-08S	Thread 1 13/16-16	Thread Sealant No	Tube O.D. 0.50	Tube O.D. 0.5	Type Swivel Nuts	Product Weight 0.07 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 1/2 inch tube i need to braze on, will this nut match up with a 13/16-16 female o-ring face seal setup?

Question by: Cindy C on Oct 23, 2025, 4:39 PM

For tying a 0.50 inch braze tube end into an O-ring face seal connection, this adapter is built exactly for that combo. One side is a 0.50 braze tube connection and the other is a 13/16-16 female O-ring face seal nut.

Answer by: Customer Support on Oct 25, 2025, 3:39 PM

Similar Products

Model Number	Tube O.D.	Thread 1	A	E
FC2326-06S	0.38	11/16-16	0.67	0.53
FC2326-08S	0.5	13/16-16	0.83	0.65
FC2326-10S	0.63	1-14	0.92	0.83
FC2326-16S	1	1-7/16-12	1.1	1.14
