Steel Adapter, 0.38 Braze Tube To 11/16-16 Female O-Ring Face Seal Nut

A 0.67	Alternate Part Numbers Alternate Part Number C1EP95, Alternate Part Number MI-00444200, Alternate Part Number MINO-00015I00766	E 0.53	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Finish Zinc Clear Trivalent Chromate	Materials Carbon steel	Series FC2326	Supplier Part Number FC2326-06S	Thread 1 11/16-16	Thread Sealant No	Tube O.D. 0.38	Tube O.D. 0.38	Type Swivel Nuts	Product Weight 0.04 lbs

Product Questions & Answers 5

Product Questions & Answers

Will this nut fit on a 3/8" tube?

Question by: Kent P on May 10, 2025, 10:40 AM

It's designed to fit a 0.38 inch braze tube.

Answer by: Customer Support on May 12, 2025, 6:32 AM

Trying to replace a swivel nut I messed up. Is FC2326-06S the one with 11/16-16 female ORFS threads and a 3/8 tube braze end?

Question by: Glen T on Mar 7, 2026, 10:38 AM

Match it up by the two key sizes. This FC2326 Series swivel nut is a steel braze tube to female O-Ring Face Seal nut with a 0.38 inch tube OD and an 11/16-16 thread.

Answer by: Customer Support on Mar 8, 2026, 8:00 PM

got a 3/8 braze tube line i'm trying to hook up to an ORFS fitting, this the right nut for that?

Question by: Hubert B on Apr 2, 2025, 7:13 AM

For a 0.38 OD braze tube connecting to an 11/16-16 female O-Ring Face Seal port, yes, this is the correct swivel nut. It's part of the Danfoss/Aeroquip FC2326 series and serves as the spare nut component for that braze adapter configuration. The swivel design lets the nut rotate during installation so you're not fighting the tube to get alignment right.

Answer by: Customer Support on Apr 4, 2025, 6:31 AM

i busted the nut on my hose end, is this the right spare nut for an Eaton Aeroquip FC2326 setup?

Question by: Donna W on Oct 11, 2025, 7:06 PM

For replacement purposes, it’s an Eaton Aeroquip spare part nut for the FC2326 Series, with catalog number C1EP95 and SKU FC2326-06S.

Answer by: Customer Support on Oct 13, 2025, 8:08 AM

Will this Eaton Aeroquip adapter work to connect a 3/8 inch tube to a female O-ring face seal? Just want to make sure I'm reading it right.

Question by: Sherry R on Feb 13, 2026, 8:55 PM

Yes, that's correct. This steel adapter is designed to connect a 0.38 inch braze tube to an 11/16-16 female O-ring face seal nut.

Answer by: Customer Support on Feb 14, 2026, 9:16 PM

Similar Products

Model Number	Tube O.D.	Thread 1	A	E
FC2326-06S	0.38	11/16-16	0.67	0.53
FC2326-08S	0.5	13/16-16	0.83	0.65
FC2326-10S	0.63	1-14	0.92	0.83
FC2326-16S	1	1-7/16-12	1.1	1.14

Customers Who Bought This Item Also Bought

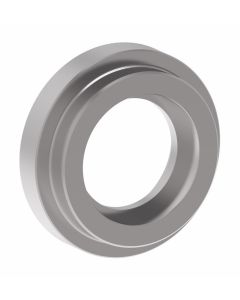

Steel Adapter, 0.38 Inch O-Ring Face Seal Shoulder Internal Braze
