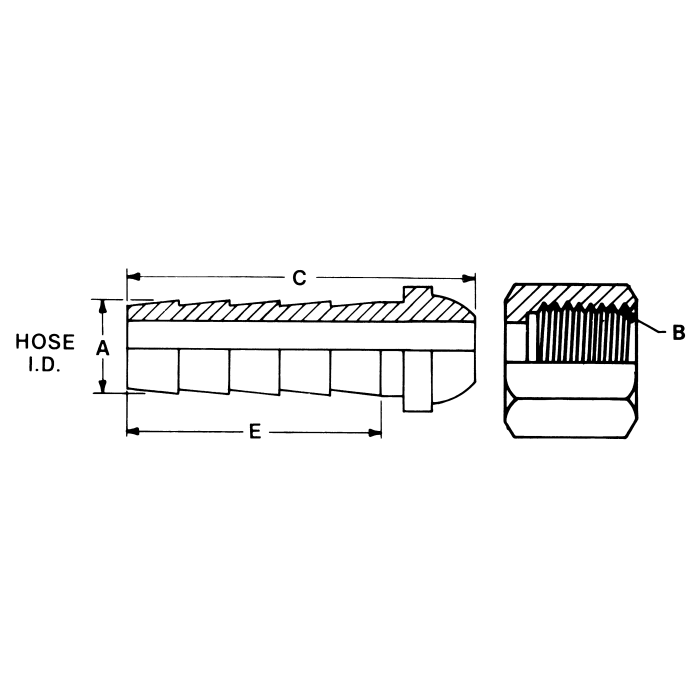

Brass Short Shank Type Fitting, 0.50 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

C
1.42
E
0.97
Brand
Dixon Valve & Co
Brand
Dixon Valve & Co
Pack Size
1.00
UOM
EA
Hose I.D.
0.50
Supplier Part Number
1240806K
Alternate Part Numbers
Alternate Part Number C1AJ54, Alternate Part Number MI-00361821, Alternate Part Number MINO-00056F96226
Product Weight
0.08 lbs

Product Questions & Answers

trying to swap out a barb fitting i busted, what hose size and thread is this one set up for
Question by: Steve T on Apr 1, 2025, 4:15 PM
It’s a short shank brass hose barb made for 0.50 inch hose ID, and the threaded end is 3/8-18 NPSM female swivel (female NPT swivel style).
Answer by: Customer Support on Apr 2, 2025, 9:57 PM
fitting's got a 1/2 inch barb end -- does the swivel side thread onto a standard 3/8 female NPT port or is it something different?
Question by: Wade H on Apr 3, 2025, 2:34 PM
Close, but worth clarifying. The swivel end uses 3/8-18 NPSM threading, which is straight mechanical thread rather than tapered NPT. NPSM and NPT share the same thread pitch and diameter, so they will engage, but NPSM relies on a sealing surface or gasket at the face rather than thread taper interference. If your port is a standard 3/8 NPT, make sure there is a proper mating surface for the swivel to seal against.
Answer by: Customer Support on Apr 5, 2025, 7:20 AM
Will this fitting work for low-pressure fluid transfer?
Question by: Roy R on Dec 23, 2025, 7:30 AM
Primarily designed for low-pressure fluid transfer, suction, and discharge, this brass fitting should suit your needs in those applications.
Answer by: Customer Support on Dec 24, 2025, 12:46 PM

Similar Products

Model Number Hose I.D. Thread 1 C E Price Buy Now
124-0606 0.375 3/8-18 NPSM 1.45 0.97
124-0402 0.25 1/8-27 NPSM 1.3 0.97
124-0404 0.25 1/4-18 NPSM 1.39 0.97
124-0504 0.313 1/4-18 NPSM 1.39 0.97
124-0604 0.375 1/4-18 NPSM 1.37 0.97
124-0806 0.5 3/8-18 NPSM 1.42 0.97
124-0808 0.5 1/2-14 NPSM 1.54 0.97
