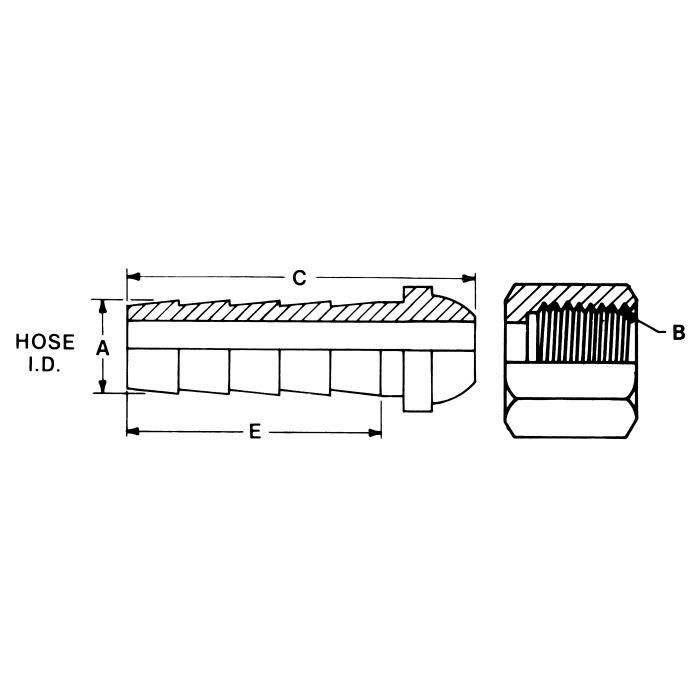

Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 3/8-18 NPSM Female NPT Swivel, Straight

C 1.45	E 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Supplier Part Number 1240606K	Alternate Part Numbers Alternate Part Number C1AJ53, Alternate Part Number MI-00361817, Alternate Part Number MINO-00056F96222	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Need to swap out a barb fitting on a 3/8 inch ID hose, will this one match up on the hose side and the swivel side?

Question by: Kent H on May 25, 2025, 4:51 PM

It is set up for a 0.375 inch hose ID on the barb end and a 3/8-18 NPSM female swivel thread on the other end, in a straight configuration.

Answer by: Customer Support on May 26, 2025, 6:40 PM

got a 3/8 id hose and need to match it up to a pipe thread. does the swivel side hook right up to normal 3/8 inch pipe?

Question by: Roger W on Sep 26, 2025, 10:20 AM

Threading on the swivel end is a 3/8-18 NPSM female. That means it will easily mate with standard 3/8 NPT male pipe connections while the barb side slides straight into your 0.375 inch inner diameter hose.

Answer by: Customer Support on Sep 28, 2025, 7:07 AM

got a 3/8 inch ID hose, is this the right barb size for it?

Question by: Eddie R on Oct 5, 2025, 6:40 AM

For hose fit, it’s made for a 0.375 inch hose I.D., which is the same as a 3/8 inch I.D. hose. It’s a short shank brass hose barb style fitting.

Answer by: Customer Support on Oct 6, 2025, 5:53 PM

Similar Products

Model Number	Hose I.D.	Thread 1	C	E
124-0606	0.375	3/8-18 NPSM	1.45	0.97
124-0402	0.25	1/8-27 NPSM	1.3	0.97
124-0404	0.25	1/4-18 NPSM	1.39	0.97
124-0504	0.313	1/4-18 NPSM	1.39	0.97
124-0604	0.375	1/4-18 NPSM	1.37	0.97
124-0806	0.5	3/8-18 NPSM	1.42	0.97
124-0808	0.5	1/2-14 NPSM	1.54	0.97
