Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

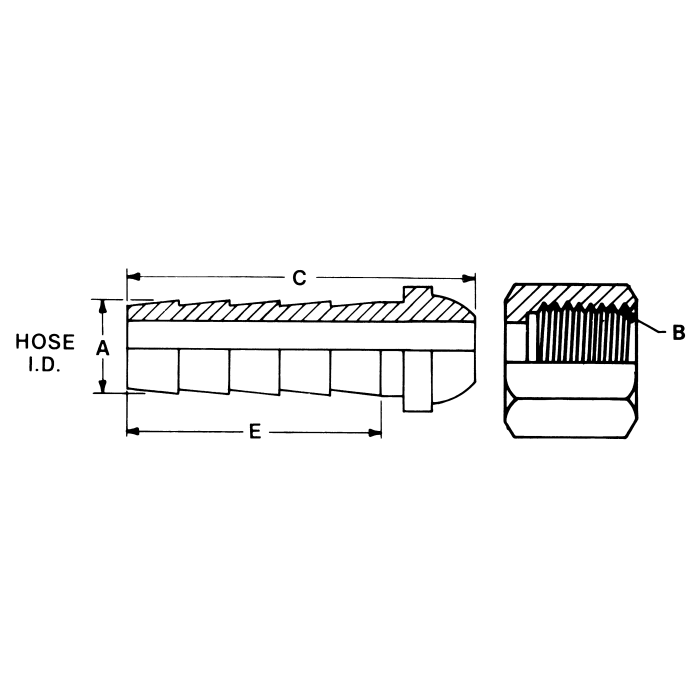

C 1.37	E 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Supplier Part Number 1240604K	Alternate Part Numbers Alternate Part Number C1AJ52, Alternate Part Number MI-00361815, Alternate Part Number MINO-00056F96220	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 3/8 hose and need it to screw onto a 1/4 NPT port, is this the right fitting?

Question by: Hank L on Jan 11, 2026, 4:02 PM

For a 3/8 inch hose ID connection to a 1/4-18 NPSM female swivel thread, this one matches that setup. It is a short shank brass hose barb sized for 0.375 inch hose ID, with a straight female NPT swivel end in 1/4-18 NPSM.

Answer by: Customer Support on Jan 13, 2026, 6:15 AM

what size hose does this barb fit onto, the 3/8 inch or somethin different?

Question by: Carl C on Jun 27, 2025, 9:22 PM

For a 0.375 inch inside diameter hose, this is the right fit. The barb end is sized for 3/8 inch ID hose, so as long as your hose matches that, you should be good to go with a standard clamp setup.

Answer by: Customer Support on Jun 29, 2025, 3:58 PM

Similar Products

Model Number	Hose I.D.	Thread 1	C	E
124-0606	0.375	3/8-18 NPSM	1.45	0.97
124-0402	0.25	1/8-27 NPSM	1.3	0.97
124-0404	0.25	1/4-18 NPSM	1.39	0.97
124-0504	0.313	1/4-18 NPSM	1.39	0.97
124-0604	0.375	1/4-18 NPSM	1.37	0.97
124-0806	0.5	3/8-18 NPSM	1.42	0.97
124-0808	0.5	1/2-14 NPSM	1.54	0.97
