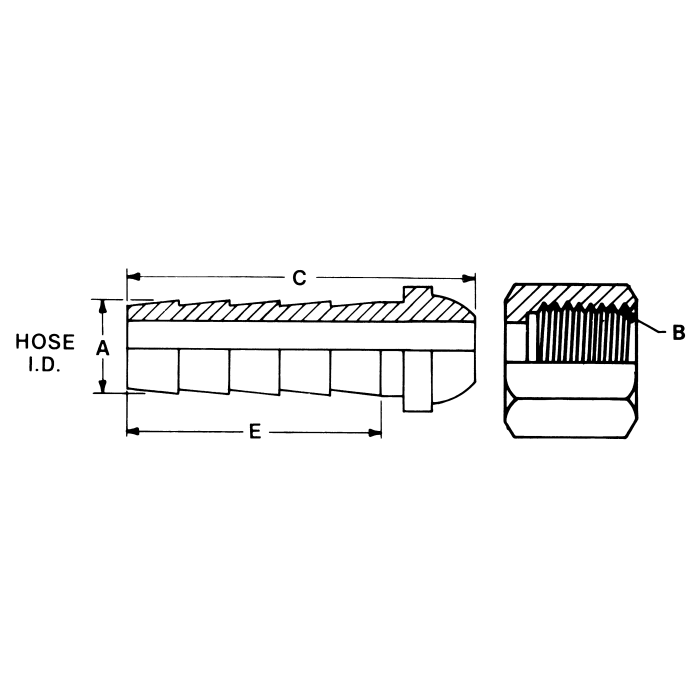

Brass Short Shank Type Fitting, 0.31 Inch Hose ID to 1/4-18 NPSM Female NPT Swivel, Straight

C 1.39	E 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.31	Supplier Part Number 1240504K	Alternate Part Numbers Alternate Part Number C1AJ51, Alternate Part Number MI-00361813, Alternate Part Number MINO-00056F96218	Product Weight 0.50 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work for low pressure suction on a water pump?

Question by: Donna L on Mar 2, 2026, 11:53 AM

The short shank design of this fitting makes it suitable for low pressure fluid transfer, including suction and discharge applications.

Answer by: Customer Support on Mar 4, 2026, 10:27 AM

got a 5/16 hose i'm trying to hook up to a female swivel port, would this fitting work for that?

Question by: Dwayne T on Feb 6, 2026, 10:51 AM

A 0.313 inch hose ID lines up with a 5/16 inch hose, so yes, that barb end should fit your hose. The swivel end is a 1/4-18 NPSM female thread, so as long as your port matches that thread spec, you're in good shape for a low pressure fluid transfer or suction and discharge setup.

Answer by: Customer Support on Feb 8, 2026, 6:44 AM

got a 5/16 hose, is this the right barb size for it?

Question by: Billy C on Mar 4, 2026, 9:18 AM

For hose fit, it matches a 0.313 inch hose ID, which is the same as 5/16 inch, and it’s a short shank hose barb style.

Answer by: Customer Support on Mar 6, 2026, 7:09 AM

Similar Products

Model Number	Hose I.D.	Thread 1	C	E
124-0606	0.375	3/8-18 NPSM	1.45	0.97
124-0402	0.25	1/8-27 NPSM	1.3	0.97
124-0404	0.25	1/4-18 NPSM	1.39	0.97
124-0504	0.313	1/4-18 NPSM	1.39	0.97
124-0604	0.375	1/4-18 NPSM	1.37	0.97
124-0806	0.5	3/8-18 NPSM	1.42	0.97
124-0808	0.5	1/2-14 NPSM	1.54	0.97
