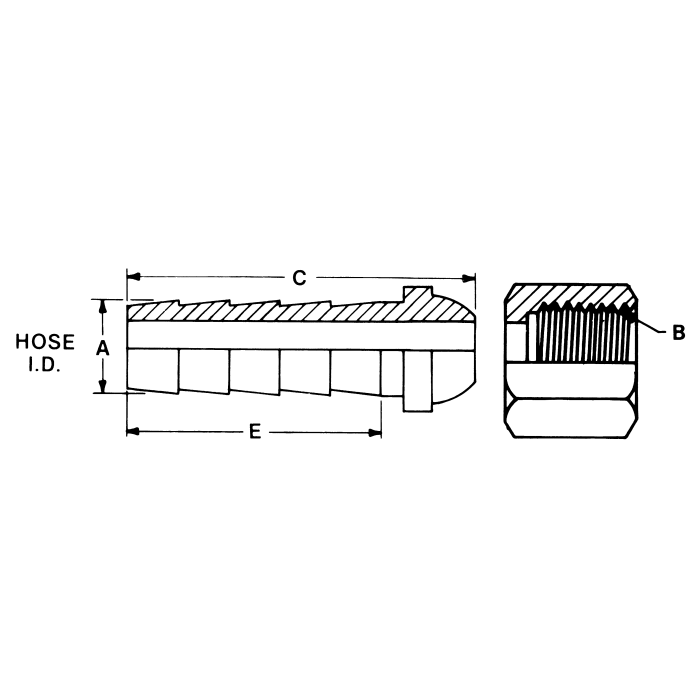

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 1/8-27 NPSM Female NPT Swivel, Straight

C 1.30	E 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.25	Supplier Part Number 1240402K	Alternate Part Numbers Alternate Part Number C1AJ49, Alternate Part Number MI-00361807, Alternate Part Number MINO-00056F96212	Product Weight 0.03 lbs

Product Questions & Answers 2

Product Questions & Answers

what size hose does this barb end fit onto exactly?

Question by: Hugh H on Nov 20, 2025, 8:17 PM

The barb end is sized for a 1/4 inch inside diameter hose. Pair it with the right clamps and make sure they're seated proper, because the working pressure you get out of it depends on the hose construction, how many clamps you use, where you place them, and what you're running through it.

Answer by: Customer Support on Nov 22, 2025, 5:20 PM

got a 1/4 inch ID hose here, what size thread is on the swivel end of this fitting?

Question by: Lyle B on Jun 7, 2025, 9:24 PM

On the swivel side it’s 1/8-27 NPSM female, and the hose barb side is sized for 0.25 inch hose ID.

Answer by: Customer Support on Jun 9, 2025, 4:47 PM

Similar Products

Model Number	Hose I.D.	Thread 1	C	E
124-0606	0.375	3/8-18 NPSM	1.45	0.97
124-0402	0.25	1/8-27 NPSM	1.3	0.97
124-0404	0.25	1/4-18 NPSM	1.39	0.97
124-0504	0.313	1/4-18 NPSM	1.39	0.97
124-0604	0.375	1/4-18 NPSM	1.37	0.97
124-0806	0.5	3/8-18 NPSM	1.42	0.97
124-0808	0.5	1/2-14 NPSM	1.54	0.97
