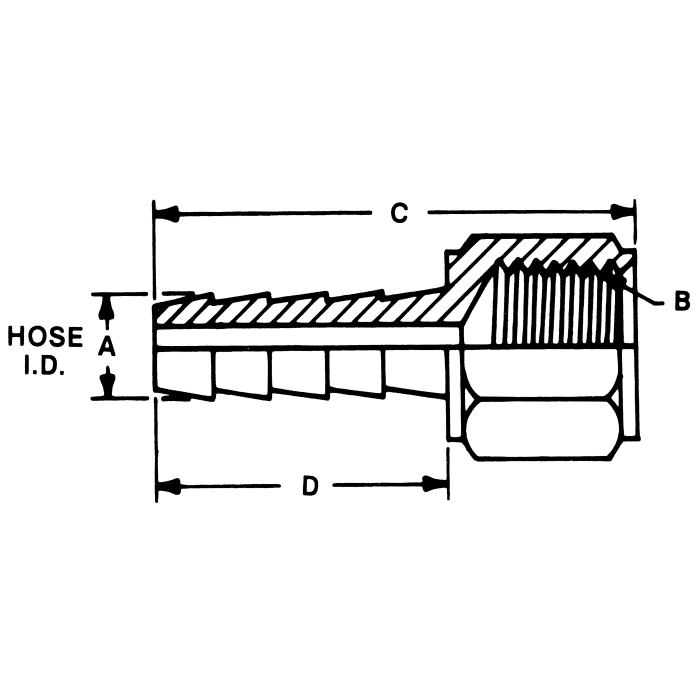

Brass Short Shank Type Fitting, 0.38 Inch Hose ID to 3/8-18 Female NPT, Straight

C 1.66	D 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Hose I.D. 0.38	Supplier Part Number 1040606C	Alternate Part Numbers Alternate Part Number C1AG93, Alternate Part Number MI-00361676, Alternate Part Number MINO-00056F96080	Product Weight 0.06 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 3/8 inch hose and need to screw into a 3/8-18 female NPT port, is this the right piece or am i mixing up threads

Question by: Patty F on Dec 20, 2025, 1:16 PM

For a 0.375 inch hose ID, the hose barb side matches 3/8 inch hose, and the threaded end on this fitting is 3/8-18 female NPT. It is a straight, short shank brass hose barb fitting, so it is meant to connect that hose size to a 3/8-18 NPT male thread.

Answer by: Customer Support on Dec 21, 2025, 6:57 PM

Similar Products

Model Number	Hose I.D.	Thread 1	C	D
104-0404	0.25	1/4-18	1.66	0.97
104-0504	0.313	1/4-18	1.66	0.97
104-0604	0.375	1/4-18	1.66	0.97
104-0606	0.375	3/8-18	1.66	0.97
104-0806	0.5	3/8-18	1.66	0.97
