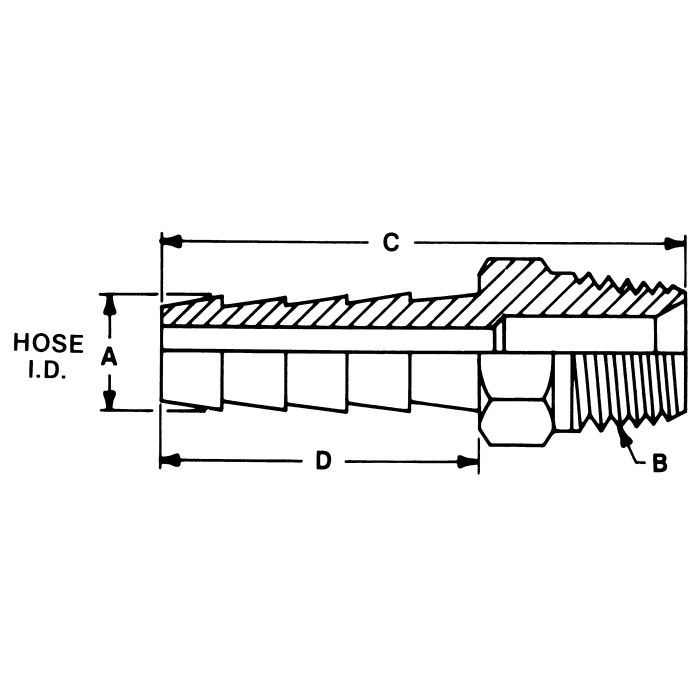

Brass Short Shank Type Fitting, 0.63 Inch Hose ID to 3/4-14 Male NPT, Straight

C 1.97	D 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Finish No	Hose I.D. 0.63	Supplier Part Number 1021012C	Alternate Part Numbers Alternate Part Number C1AG59, Alternate Part Number FMC3628769, Alternate Part Number MI-00361620, Alternate Part Number MINO-00056F96042	Product Weight 0.25 lbs

Product Questions & Answers

got a 5/8 hose, is this the right barb size for it?

Question by: Marvin T on Apr 21, 2025, 4:43 PM

For a 5/8 inch hose, the hose ID on this fitting is 0.625 inch, so it matches a 5/8 ID hose size.

Answer by: Customer Support on Apr 23, 2025, 9:30 AM

Will this fitting work for a standard 5/8" ID hose?

Question by: Rod B on Apr 22, 2025, 10:00 AM

Actually, this fitting is designed for a hose with a 0.625 inch (or 5/8") inner diameter. The other end is a 3/4-14 male NPT thread.

Answer by: Customer Support on Apr 24, 2025, 8:04 AM

Model Number	Finish	Hose I.D.	Thread 1	C	D
102-0604	No	0.375	1/4-18	1.76	0.97
102-0806	No	0.5	3/8-18	1.76	0.97
102-0808C	No	0.5	1/2-14	1.97	0.97
102-1616	No	1	1-11-1/2	2.54	1.19
4244-20-16	No	1.25	1-11-1/2	2.51	1.06
102-0202	No	0.125	1/8-27	1.06	0.46
102-0204	No	0.125	1/4-18	1.16	0.46
102-0302	No	0.188	1/8-27	1.35	0.75
102-0402	No	0.25	1/8-27	1.57	0.97
102-0404	No	0.25	1/4-18	1.76	0.97
102-0406	No	0.25	3/8-18	1.76	0.97
102-0502	No	0.313	1/8-27	1.57	0.97
102-0504	No	0.313	1/4-18	1.76	0.97
102-0506	No	0.313	3/8-18	1.76	0.97
102-0602	No	0.375	1/8-27	1.57	0.97
102-0606	No	0.375	3/8-18	1.76	0.97
102-0608	No	0.375	1/2-14	1.97	0.97
102-0804	No	0.5	1/4-18	1.76	0.97
102-0812	No	0.5	3/4-14	1.97	0.97
102-1006	No	0.625	3/8-18	1.76	0.97
102-1008	No	0.625	1/2-14	1.97	0.97
102-1012	No	0.625	3/4-14	1.97	0.97
102-1208	No	0.75	1/2-14	2.19	1.19
102-1212	No	0.75	3/4-14	2.19	1.19
102-1612	No	1	3/4-14	2.19	1.19
32-028	No	1.25	1-11-1/2
