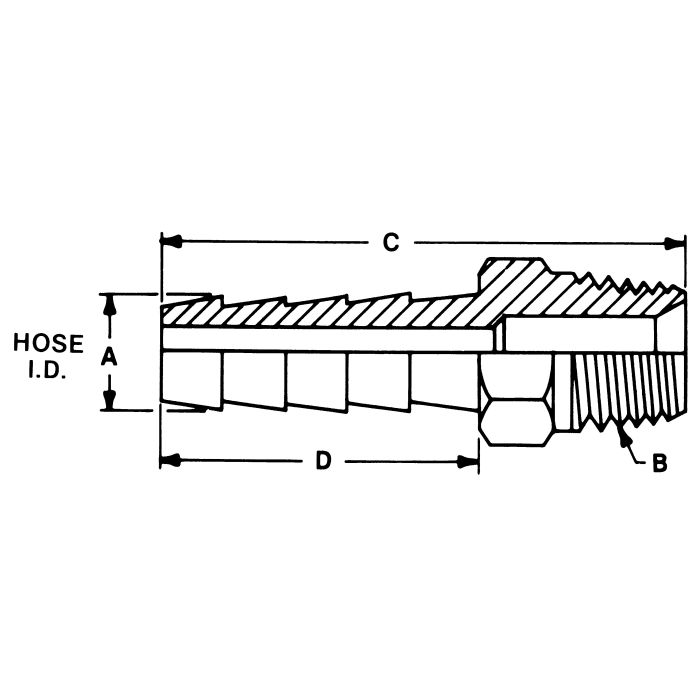

Brass Short Shank Type Fitting, 0.25 Inch Hose ID to 1/8-27 Male NPT, Straight

C 1.57	D 0.97	Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Finish No	Hose I.D. 0.25	Supplier Part Number 1020402C	Alternate Part Numbers Alternate Part Number C1AG44, Alternate Part Number FMC102-0511, Alternate Part Number MI-00361493, Alternate Part Number MINO-00056F96008	Product Weight 0.03 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an old barb fitting, is this one the kind that takes 1/4 inch hose and screws into 1/8-27 NPT?

Question by: Earl A on Apr 14, 2025, 9:10 AM

You’re looking at a short shank brass hose barb sized for 0.25 inch hose ID, with a straight 1/8-27 male NPT thread on the other end.

Answer by: Customer Support on Apr 15, 2025, 4:01 PM

Will this brass fitting hold up okay for a low-pressure water line?

Question by: Curt R on Aug 14, 2025, 12:41 PM

Machined from free-cutting brass rod, this fitting is suitable for low-pressure fluid transfer, suction, and discharge applications. Just make sure your hose and clamp setup is rated for the pressure you're dealing with.

Answer by: Customer Support on Aug 16, 2025, 8:06 AM

Similar Products

Model Number	Finish	Hose I.D.	Thread 1	C	D
102-0604	No	0.375	1/4-18	1.76	0.97
102-0806	No	0.5	3/8-18	1.76	0.97
102-0808C	No	0.5	1/2-14	1.97	0.97
102-1616	No	1	1-11-1/2	2.54	1.19
4244-20-16	No	1.25	1-11-1/2	2.51	1.06
102-0202	No	0.125	1/8-27	1.06	0.46
102-0204	No	0.125	1/4-18	1.16	0.46
102-0302	No	0.188	1/8-27	1.35	0.75
102-0402	No	0.25	1/8-27	1.57	0.97
102-0404	No	0.25	1/4-18	1.76	0.97
102-0406	No	0.25	3/8-18	1.76	0.97
102-0502	No	0.313	1/8-27	1.57	0.97
102-0504	No	0.313	1/4-18	1.76	0.97
102-0506	No	0.313	3/8-18	1.76	0.97
102-0602	No	0.375	1/8-27	1.57	0.97
102-0606	No	0.375	3/8-18	1.76	0.97
102-0608	No	0.375	1/2-14	1.97	0.97
102-0804	No	0.5	1/4-18	1.76	0.97
102-0812	No	0.5	3/4-14	1.97	0.97
102-1006	No	0.625	3/8-18	1.76	0.97
102-1008	No	0.625	1/2-14	1.97	0.97
102-1012	No	0.625	3/4-14	1.97	0.97
102-1208	No	0.75	1/2-14	2.19	1.19
102-1212	No	0.75	3/4-14	2.19	1.19
102-1612	No	1	3/4-14	2.19	1.19
32-028	No	1.25	1-11-1/2
