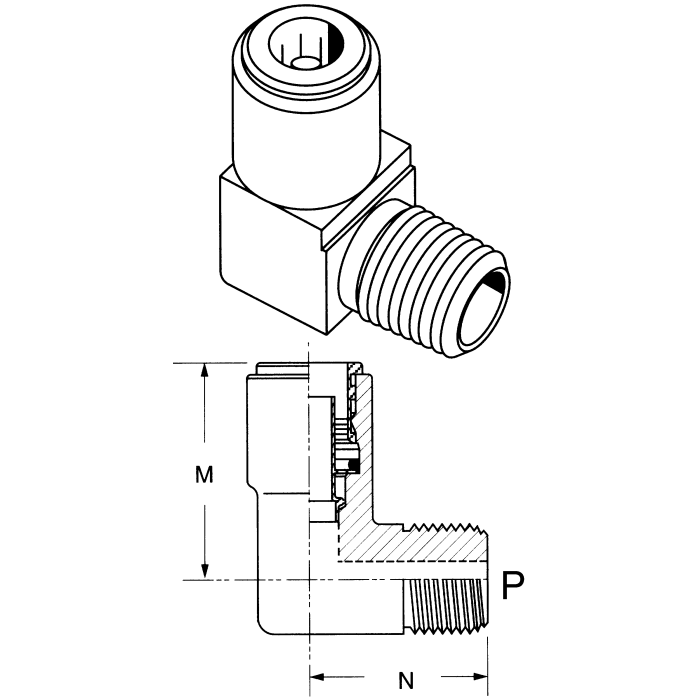

Brass Push>Connect Air Brake Tube Fittings, Tube To Male NPT, 90 deg Elbow
Products
| Model Number | Tube O.D. | Thread 1 | M | N | Price | Buy Now |
|---|---|---|---|---|---|---|
| 1869X10S | 0.625 | 1/2-14 | 1.38 | 1.54 |
|
|
| 1869X4S | 0.25 | 1/8-27 | 0.89 | 0.88 |
|
|
| 1869X4X4S | 0.25 | 1/4-18 | 0.99 | 1.06 |
|
|
| 1869X4X6S | 0.25 | 3/8-18 | 0.98 | 1.06 |
|
|
| 1869X6S | 0.375 | 1/4-18 | 1.1 | 1.14 |
|
|
| 1869X6X2S | 0.375 | 1/8-27 | 1.03 | 0.97 |
|
|
| 1869X6X6S | 0.375 | 3/8-18 | 1.12 | 1.15 |
|
|
| 1869X6X8S | 0.375 | 1/2-14 | 1.18 | 1.4 |
|
|
| 1869X8S | 0.5 | 3/8-18 | 1.13 | 1.27 |
|
|
| 1869X8X8S | 0.5 | 1/2-14 | 1.2 | 1.47 |
|
