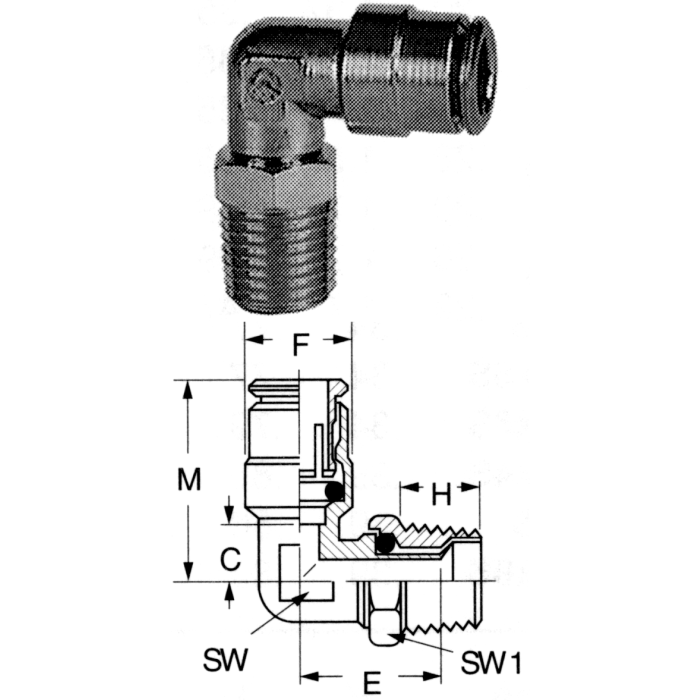

Brass Push>Connect Tube Fittings, Tube To Male NPT Swivel, 90 deg Elbow

Products

Model Number	Tube O.D.	Thread 1	E	F	M
1169X2.5AS	0.1563	10-32 UNF thread	0.53	0.39	0.79
1169X2.5S	0.1563	1/8-27	0.71	0.39	0.79
1169X2S	0.125	1/8-27	0.71	0.39	0.83
1169X4S	0.25	1/8-27	0.73	0.5	0.91
1169X4X4S	0.25	1/4-18	0.81	0.5	0.91
1169X4X6S	0.25	3/8-18	0.87	0.5	0.93
1169X5S	0.3125	1/8-27	0.77	0.59	0.98
1169X6S	0.375	1/4-18	0.89	0.69	1.12
1169X6X2S	0.375	1/8-27	0.75	0.64	1.1
1169X6X6S	0.375	3/8-18	0.91	0.69	1.12
1169X8S	0.5	3/8-18	0.95	0.77	1.22
1169X8X4S	0.5	1/4-18	0.95	0.77	1.22
1169X8X8S	0.5	1/2-14	1.12	0.77	1.22
