Adaptall Brass Male Run Bsp Tee 8095-02-02-02

Specifications

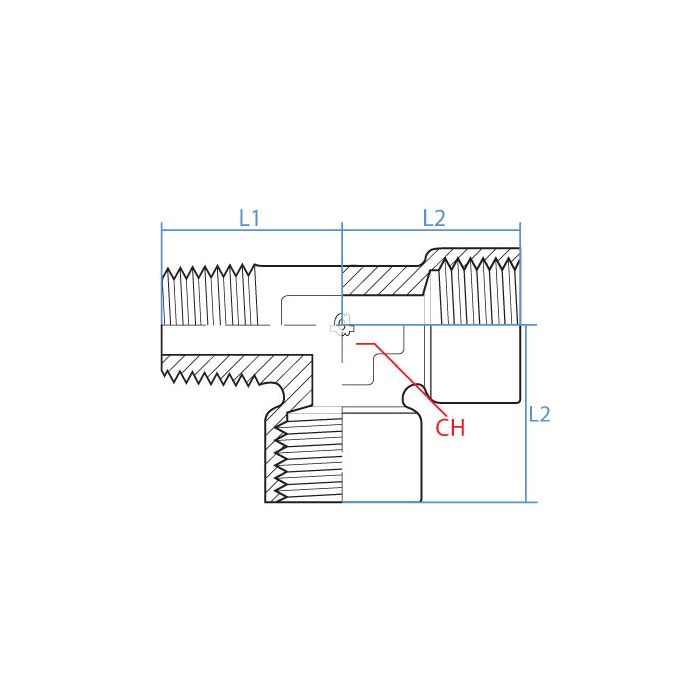

CH Width 12mm	L1 Length 18mm	L2 Length 20mm	Adaptall Material Brass	Adaptall Shape Tee	Side 1 Callout R 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspt	Side 2 Callout G 1/8 - 28	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Side 3 Callout G 1/8 - 28	Side 3 Gender F	Side 3 Size 1/8"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8095-02-02-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Trying to tee off a 1/8 BSP line here. Are the two run ports G 1/8-28 female and the branch R 1/8-28 male on this fitting?

Question by: Wayne D on May 10, 2025, 2:43 PM

For this tee, the straight-through run ports are both 1/8 inch BSPP female threads with a G 1/8-28 callout, and the branch is a 1/8 inch BSPT male thread with an R 1/8-28 callout. It is meant to let you mix parallel BSPP on the run with a tapered BSPT branch in one body.

Answer by: Customer Support on May 11, 2025, 7:01 PM

What's the thread situation on this tee, like, which end screws into something and which ones accept fittings?

Question by: Darryl C on Jul 13, 2025, 8:55 PM

The branch port, which sticks out from the side, has a 1/8" BSPT male thread. That's the tapered type, so it threads into a female BSPT or compatible port on your component. The two run ports on either end of the straight-through path are 1/8" BSPP female, meaning they accept male BSPP fittings coming in from your line. So you've got one male tapered outlet and two female parallel inlets all in one body.

Answer by: Customer Support on Jul 15, 2025, 10:33 AM

Is this here tee fitting made of real brass?

Question by: Ross H on Sep 15, 2025, 12:15 PM

The Adaptall Male Run BSP Tee is manufactured from brass, which provides good corrosion resistance.

Answer by: Customer Support on Sep 17, 2025, 6:38 AM
