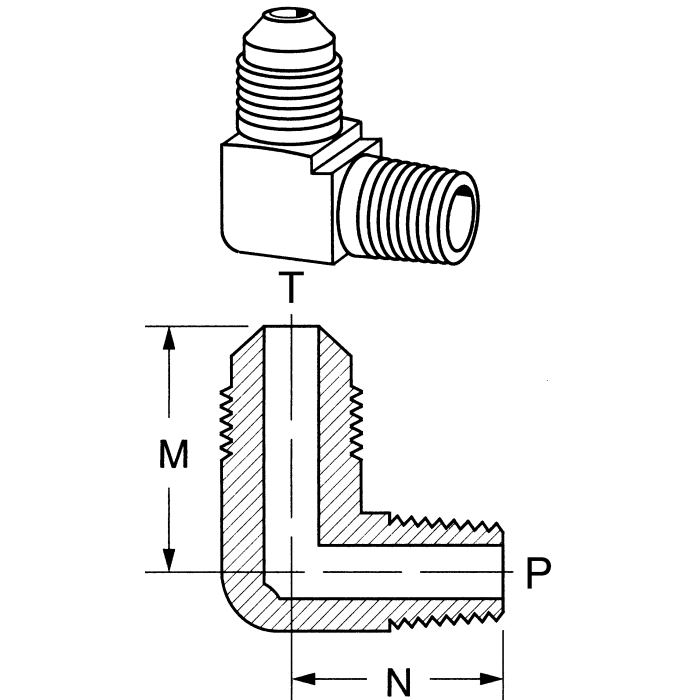

Brass Adapters, Male NPT To Male SAE 45 deg Flare, 90 deg Elbow
Products
| Model Number | Tube O.D. | Thread 1 | Thread 2 | M | N | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 49X4X4 | 0.25 | 1/4-18 | 7/16-20 | 0.88 | 0.94 |
|
|
| 49X6X6 | 0.38 | 3/8-18 | 5/8-18 | 1.06 | 1.09 |
|
|
| 49X10 | 0.63 | 1/2-14 | 7/8-14 | 1.41 | 1.38 |
|
|
| 49X10X6 | 0.63 | 3/8-18 | 7/8-14 | 1.41 | 1.23 |
|
|
| 49X12 | 0.75 | 1/2-14 | 1-1/16-14 | 1.62 | 1.5 |
|
|
| 49X12X12 | 0.75 | 3/4-14 | 1-1/16-14 | 1.59 | 1.62 |
|
|
| 49X4 | 0.25 | 1/8-27 | 7/16-20 | 0.81 | 0.76 |
|
|
| 49X4X6 | 0.25 | 3/8-18 | 7/16-20 | 0.94 | 1.03 |
|
|
| 49X5 | 0.31 | 1/8-27 | 1/2-20 | 0.91 | 0.78 |
|
|
| 49X5X4 | 0.31 | 1/4-18 | 1/2-20 | 0.95 | 0.92 |
|
|
| 49X6 | 0.38 | 1/4-18 | 5/8-18 | 0.97 | 1.06 |
|
|
| 49X6X2 | 0.38 | 1/8-27 | 5/8-18 | 1.03 | 0.91 |
|
|
| 49X6X8 | 0.38 | 1/2-14 | 5/8-18 | 1.16 | 1.28 |
|
|
| 49X8 | 0.5 | 3/8-18 | 3/4-16 | 1.22 | 1.12 |
|
|
| 49X8X4 | 0.5 | 1/4-18 | 3/4-16 | 1.22 | 1.19 |
|
|
| 49X8X8 | 0.5 | 1/2-14 | 3/4-16 | 1.26 | 1.36 |
|
