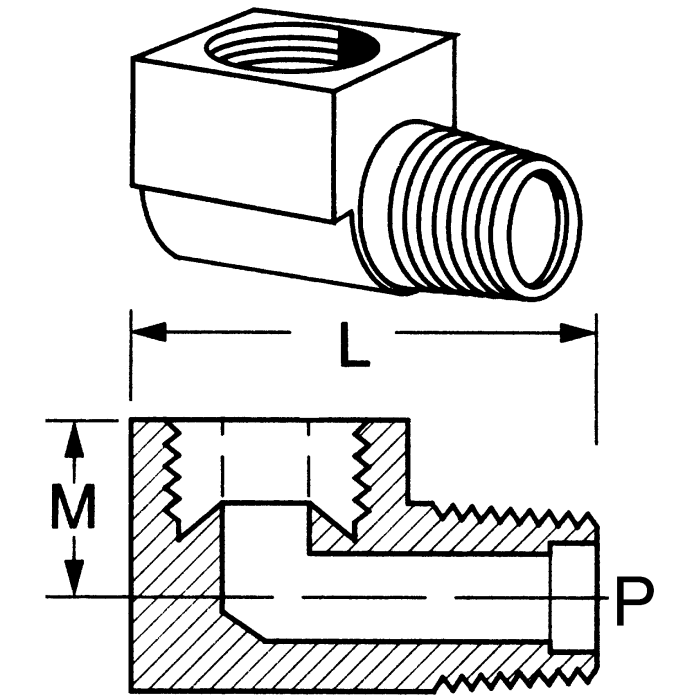

Brass Adapters, Male NPT To Female 42 deg Inverted Flare, 90 deg Elbow
Products
| Model Number | Tube O.D. | Thread 1 | L | M | Price | Buy Now |
|---|---|---|---|---|---|---|
| 402X3 | 0.1875 | 1/8-27 | 0.85 | 0.27 |
|
|
| 402X4 | 0.25 | 1/8-27 | 0.92 | 0.33 |
|
|
| 402X4X4 | 0.25 | 1/4-18 | 1.09 | 0.28 |
|
|
| 402X5 | 0.3125 | 1/8-27 | 0.98 | 0.47 |
|
|
| 402X5X4 | 0.31 | 1/4-18 | 0.45 |
|
||
| 402X6 | 0.375 | 1/4-18 | 1.32 | 0.53 |
|
|
| 402X8 | 0.5 | 3/8-18 | 1.48 | 0.59 |
|
|
| 402X8X8 | 0.5 | 1/2-14 | 1.67 | 0.66 |
|
