Brass 90* Male Bspt X Fem Bsp

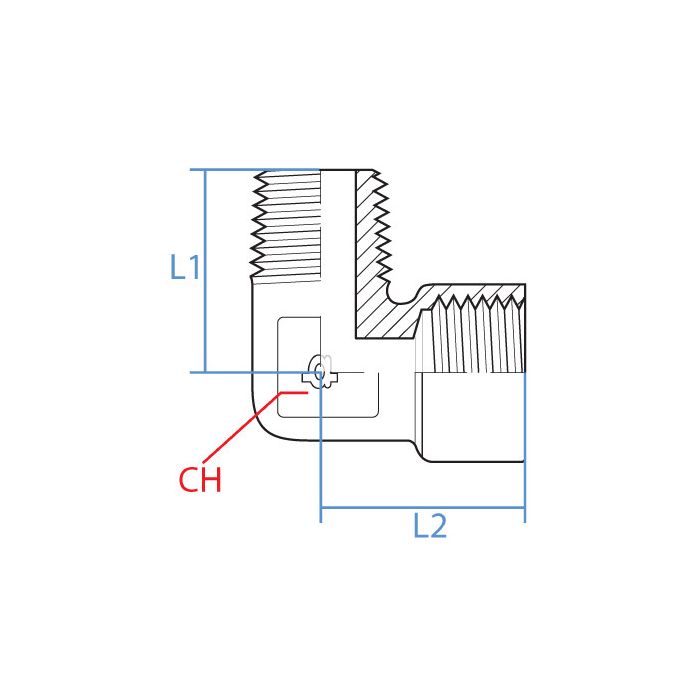

CH Width 17mm	L1 Length 26mm	L2 Length 27mm	Adaptall Material Brass	Adaptall Shape 90° Elbow	Side 1 Callout R 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspt	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 8060-06-06	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line that needs to turn 90 degrees in a real tight spot, male BSPT on one end, female BSPP on the other, both 3/8. This fitting do that job?

Question by: Debbie G on Jun 6, 2025, 9:00 AM

That's exactly what this one's built for. The male side runs an R 3/8-19 tapered BSPT thread and the female side accepts a G 3/8-19 parallel BSPP connection, so it bridges those two thread types right at the 90-degree turn. At 26mm on the L1 and 27mm on the L2, it stays pretty compact, which helps a lot when you're working in a cramped installation where a straight adapter just won't route cleanly.

Answer by: Customer Support on Jun 7, 2025, 3:15 PM
