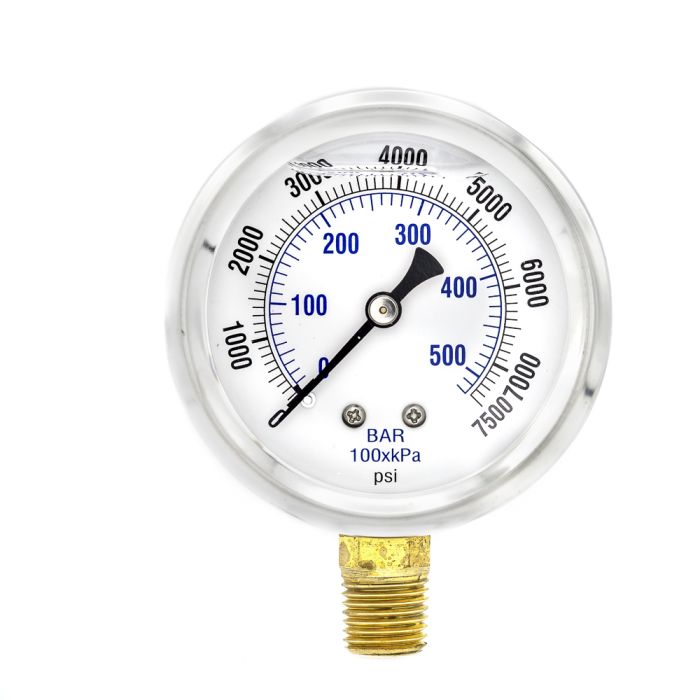

Pressure Gauges, Bottom Connection
Products
| Part Number | Model Number | Specifications | Fill Type | Thread 1 | Materials | Dimensions | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| PRO-201L-254U | PRO-201L-254U | 2.5" 0-10,000 PSI/ 0-700 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| 465866 | 465866 | 2.5" 0-3,000 PSI/ 0-210 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254B | 63 1008AL 02L 15#-9815 | 2.5" 0-15 PSI / 0-1.0 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254F | 63 1008AL 02L 160#-9821 | 2.5" 0-160 PSI/ 0-11 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254H | PRO-201L-254H | 2.5" 0-300 PSI/ 0-20 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254A | PRO-201L-254A | 2.5" 0 - 30Hg/ 0- -1.0 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254CC | PRO-201L-254CC | 2.5" 30Hg-30 PSI/ -1.0-2.0 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254M | PRO-201L-254M | 2.5" 0-1,000 PSI/ 0-70 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| 649027 | 649027 | 2.5" 0-100 PSI/ 0-7 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254O | 63 1008AL 02L 2000#-9827 | 2.5" 0-2,000 PSI/ 0-140 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254CB | 63 1008AL 02L 15#/V-9816 | 2.5" 30Hg-15 PSI/ -1.0 - 1.0 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254Q | PRO-201L-254Q | 2.5" 0-4,000 PSI/ 0-280 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| 649140 | 649140 | 2.5" 0-5,000 PSI/ 0-350 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254V | 63 1008AL 02L 15000#-9833 | 2.5" 0-15,000 PSI/ 0-1000 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| 649065 | 649065 | 2.5" 0-200 PSI/ 0-14 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| 648990 | 63 1008AL 02L 30#-9817 | 2.5" 0-30 PSI/ 0-2.0 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| 649010 | 63 1008AL 02L 60#-9819 | 2.5" 0-60 PSI/ 0-4.0 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254P | PRO-201L-254P | 2.5" 0-3,000 PSI/ 0-210 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254K | 63 1008AL 02L 600#-9824 | 2.5" 0-600 PSI/ 0-40 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
|
| PRO-201L-254N | 63 1008AL 02L 1500#-9826 | 2.5" 0-1,500 PSI/ 0-100 Bar | Liquid Filled | 1/4 NPT | 304SS | A=2.48 B=1.21 C=2.71 D=0.46 |
|
