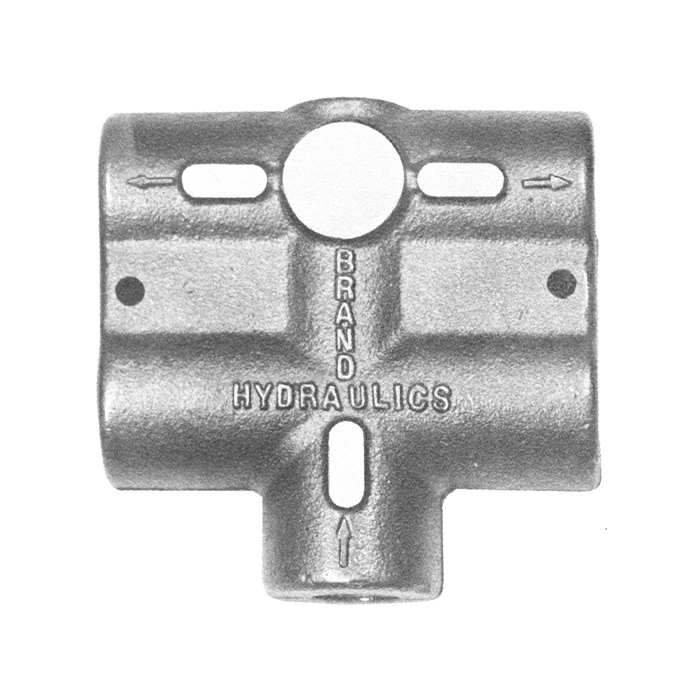

BG5 Series 3-Port Pressure Compensated Non-Adjustable Constant Volume Priority Flow Divider, SAE -12 Ports, 0 - 30 GPM Main Flow, 2.00 Priority Flow

Adjustment No	Check Valve No	Brand Brand Hydraulics Inc.	Brand Brand Hydraulics	Pack Size 1.00	UOM EA	Flow Range 0 - 30	Port Size SAE -12	Priority Setting 2	Spool Material Steel	Supplier Part Number BG502-12SAE	Alternate Part Numbers Alternate Part Number BG-502-12-SAE, Alternate Part Number C1MK41	Product Weight 6.80 lbs

Product Questions & Answers 1

Product Questions & Answers

got a steering circuit that needs a steady 2 gpm no matter what the rest of the system is doing. is that what this BG5 divider is for?

Question by: Neal A on Aug 27, 2025, 4:57 PM

In a system where one function has to get oil first, this valve splits one inlet flow into a priority outlet and an excess outlet. The priority side on this model is a constant 2.00 GPM setting, and both outlet flows are pressure compensated so the two outlet flows add up to the inlet flow.

Answer by: Customer Support on Aug 29, 2025, 11:24 AM

Similar Products

Model Number	Flow Range	Priority Setting	Spool Material	Price	Buy Now
BG-508-12SAE	0 - 30	8	Steel
BG502-12SAE	0 - 30	2	Steel
