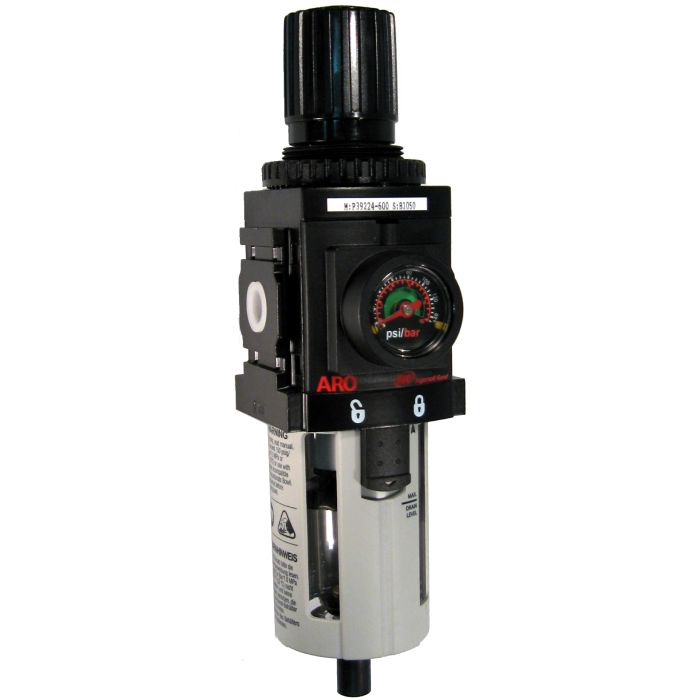

Aro-Flo Series Air Line Piggyback Filter/Regulator, Up To 1770 SCFM at 250/300 PSI
Features |
Filter-regulators, or “piggybacks,” combine the functions of both a filter and regulator. Piggybacks are compact and most effective when space is a constraint. Piggybacks can be ordered with different filter elements and can be modified with different springs, depending on the filtration and air regulating requirements. |
Gauge Port |
1/8 NPT. |
Maximum Inlet Pressure |
1000 through 3000 Series: Polycaronate Bowl 150 psi, Metal Bowl 250 psi. |
Temperature Range |
1000 through 3000 Series: Polycaronate Bowl 23-125 °F, Metal Bowl 23-175 °F. |
Products
| Model Number | Series | Flow Rating (SCFM) | Element | Drain Type | Materials | Function | Pressure Range (psi) | Gauge | Dimensions | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P39124-100 | 1000 | 47 | 5 micron | Manual | Polycarbonate | Relieving | 0-140 PSI | No | 1.58W x 6.20H |
|
|
| P39124-600 | 1000 | 47 | 5 micron | Manual | Polycarbonate | Relieving | 0-140 PSI | Yes | 1.58W x 6.20H |
|
|
| P39224-600 | 1500 | 72 | 5 micron | Manual | Polycabonate | Relieving | 0-140 PSI | Yes | 2.21W x 8.15H |
|
|
| P39344-600 | 2000 | 172 | 5 micron | Manual | Polycarbonate | Relieving | 0-140 PSI | Yes | 2.78W x 9.96H |
|
